TOPOTEK Gimbal cameraDYDG609L12 is a high-precision two-axis stabilized camera gimbal integrated with a 640*512 thermal imaging sensor and a 1200m laser rangefinder, supporting IP and HDMI video output. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption. The thermal imaging sensor uses a 640×512 resolution vanadium oxide detector, and its focal length is 9.1mm. The camera supports serial port, S.BUS and IP control, back up with TF card pictures and videos storage.
| Voltage： |
DC 12V-26.2V |
Power： |
Dynamic 6W |
| Pitch Angle Range： |
-30～+100° |
Yaw Angle Range： |
-140°～+140° |
| Horizontal Angle Jitter： |
±0.03° |
Pitch and Roll Angle Jitter： |
±0.02° |
| One-click Return Function： |
Quick return to initial position with one click |
Adjustable PTZ Speed： |
The current speed mode based on the multiple zoom of camera |
| Resolution： |
640*512 |
| Pixel spacing： |
12μm |
| Type： |
Uncooled vanadium oxide |
| Wavelength range： |
8～14μm |
| Thermal sensitivity (NETD)： |
≤40mk@F1.0@25℃ |
| Field of view： |
9.1mm Lens，Field of view：48.3°×38.7° |
| Measurement function (optional)： |
Highest, Average, Lowest temperature display, Support global temperature measurement, optional full pixel temperature saving function |
| Laser wave： |
905nm (class 1 laser) |
| Detect range： |
5～1200m |
| Accuracy / Resolution： |
±1m |
| Min tracking target size： |
16×16 pixels |
Max tracking target size： |
256×256 pixels |
| Target Memory Time： |
2 seconds |
Tracking speed： |
50 Pixel/Frame max |
| Simultaneous detection qty： |
100 targets max |
Recognized categories： |
Human and Vehicle |
| Min detection target size： |
32×32 pixels |
Debounce： |
Dynamic stabilization |

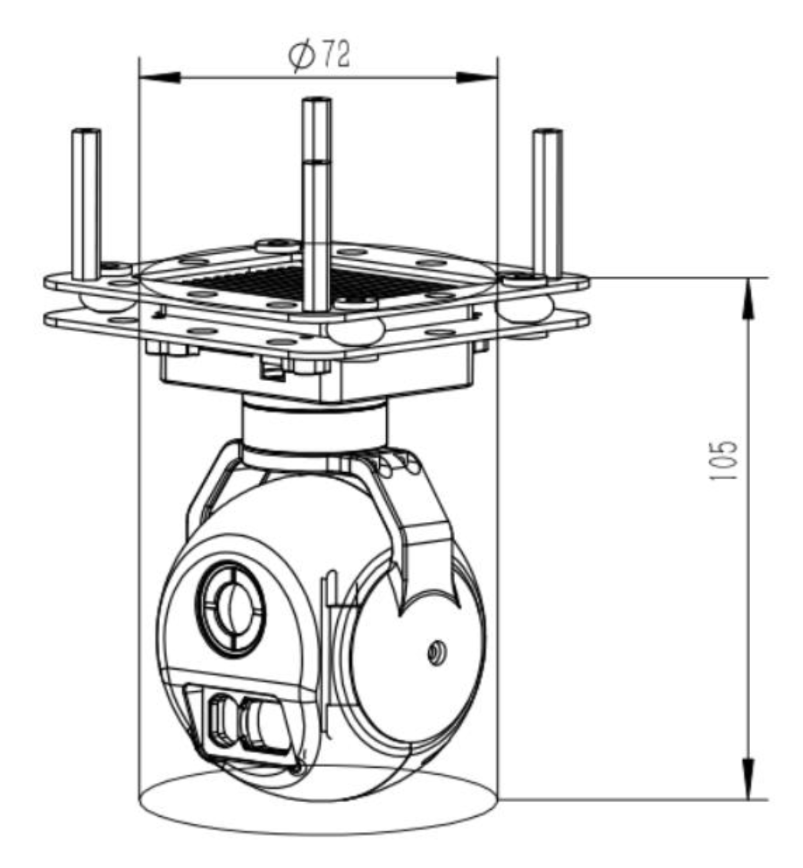

| Dimensions： |
72mm × 105mm |
Operating Temperature： |
-10℃ to +45℃ / 20% to 80% RH |
| Storage environment： |
-20℃ to +60℃ / 20% to 95% RH |
Weight： |
210±10g |
