TOPOTEK Gimbal camera
DYD40G635L40 is a three-sensor two-axis stabilization gimbal camera system that integrates an 8MP 140 hybrid zoom, 2x lossless zoom visible light sensor, a 35mm focal length 640*512 thermal sensor, and an up to 4000-meter laser rangefinder. The gimbal uses high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption, supporting network RTSP video output. The visible light sensor employs a high sensitivity, high dynamic range CMOS sensor with an effective pixel of 8 million. The camera supports IP RTSP streaming output, Picture-in-Picture modes and pseud-color modes. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.

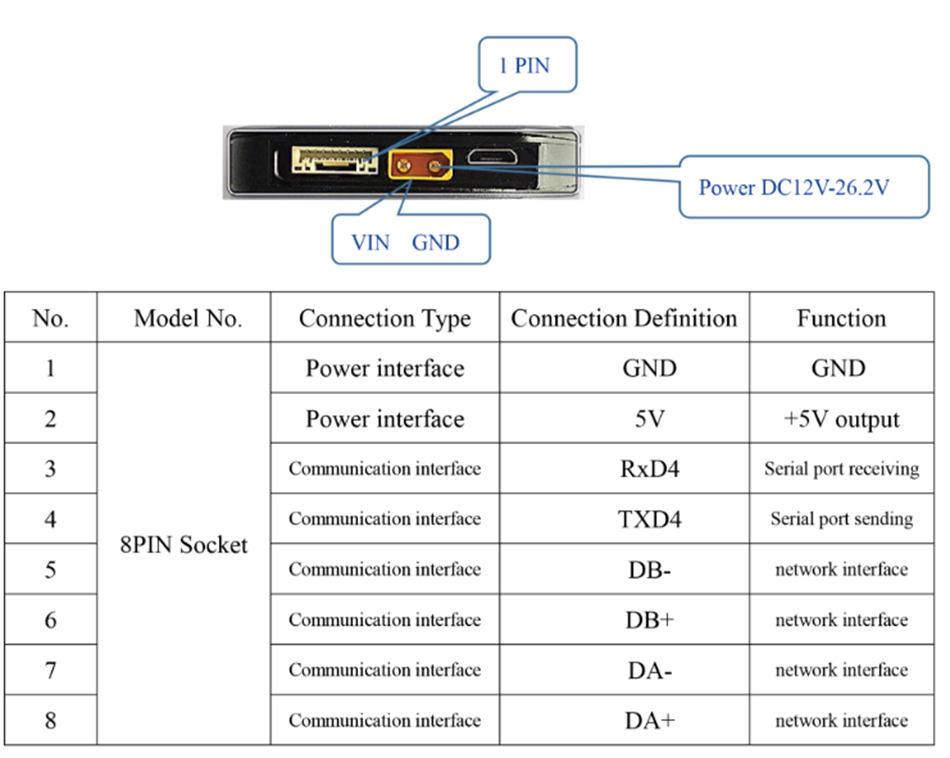

| DC 12V-26.2V | Dynamic 8W | ||
| -20~+100° | ±360°*N | ||
| ±0.02° | ±0.03° | ||
| Automatically and quickly return to the initial position with one click | When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification |
| 1/1.8inch 8 mega pixel high dynamic range CMOS SENSOR with 2x lossless zoom | |
| High-definition Optical Zoom Sensor, f=6.7±5%~125±5%mm | |
| Real-time rapid focusing feature with focusing time less than 1 second | |
| D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5% |
|
| IP network output video stream, local TF card storage |
| 640×512 pixel | |
| 12μm | |
| Uncooled vanadium oxide | |
| 8～14μm | |
| ≤50mk@25℃ | |
| 35mm Lens，FOV：12.5°x10° |
| 1535nm (Eye-safe for humans) | |
| 20--4000m (Must not be directed at objects less than 20 meters away) | |
| Accuracy≤±2m; Resolution: ≤20m |
| 16×16 pixels | 256×256 pixels | ||
| 2 seconds | 50 Pixel/Frame max | ||
| 100 targets max | Human and Vehicle | ||
| 32×32 pixels | Dynamic stabilization |
| 142mm×188mm×127.92mm | -10℃ to +55℃ / 20% to 80% RH | ||
| -20℃ to +60℃ / 20% to 95% RH | 1209±20 g |
