  • DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

0 stars, based on 0reviews
Price:
€9740.04 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

DYD30G619 is a professional two-axis stabilization gimbal camera with integrated 270x hybrid zoom daytime CMOS sensor and 19mm focal length 640×512 thermal imaging sensor, supporting Ethernet RTSP output. Its housing is full metal. The gimbal uses a high-precision encoder FOC control scheme, characterized by high stability, small size, light weight, and low power consumption. The visible light sensor employs a wide dynamic CMOS sensor with an effective pixel of 2 million, while the thermal imaging sensor uses a 640×512 resolution vanadium oxide detector with a baffle design. The camera supports RTSP streaming output, 4 Picture-in-Picture modes and 10 pseud-color modes for thermal. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.

DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR


DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

Voltage：

   DC12～26.2V

Power：

   Dynamic 7.5W

Pitch Angle：

   -30°～ +120°

Yaw Angle：

   ±360°*N

Horizontal angle jitter：

   ±0.03°

Tilt and roll direction angle jitter：

   ±0.02°

One-Click Restore：

   One-click to center

Adjustable Gimbal Speed：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple

DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

CMOS Size：

   1/2.8 INCH 2 mega pixel wide dynamic CMOS SENSOR

Optical Zoom：

   30x HD optical zoom lens, f=4.5±10%～135±10%mm

AF Time：

   Real time fast focusing, focusing time < 1s

Video Output：

   Network output RTSP 1080P stream, 1080P local TF card storage

Field Angle(FOV)：

    D : WIDE 67.8º±5% TELE 2.77º±5%
  H : WIDE 59.8º±5% TELE 2.34º±5%
  V : WIDE 40.5º±5% TELE 1.48º±5%

Support Mode：

   1080P 30fps


DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

Resolution ratio：

   640×512pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～14μm

Thermal sensitivity(NETD)：

   ≤50mk@25℃@F1.0

Video Output：

   IP Output

Field of view：

   19mmLens，Field of view：22.9°x18.4°

Measurement function (optional)：

   Highest, Average, Lowest temperature display, Support global temperature measurement, optional full pixel temperature saving function


DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR

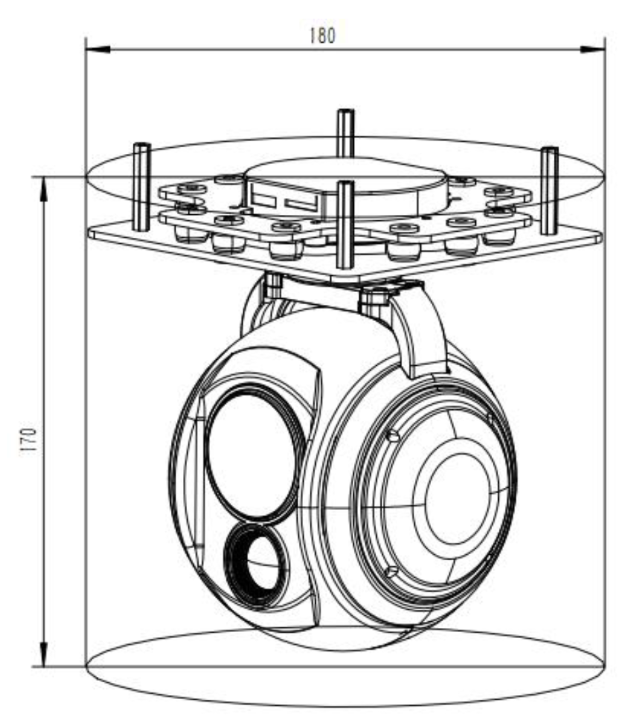

Dimensions：

   180mm×170mm

Operating Environment：

   -10℃ to +60℃ / 20% to 80% RH

Storage Conditions：

   -20℃ to +80℃ / 20% to 95% RH

Weight：

   865±20g




DYD30G619 High Performance Dual Sensor Gimbal 30X Optical Zoom+19mm 640*512 IR
