TOPOTEK Gimbal camera
DHU415S90 is a dual visible light 3 axis stabilized small gimbal that integrates 2 visible light cameras, with one channel of 8 mega pixels, and the other channel of 2 mega pixels with IRCUT function. Adopting dual IP and HDMI dual output. It has the characteristics of high stability, small size, light weight, and low power consumption; The system supports network RTSP output, 2 video streams can be synthesized and output in picture in picture. It supports multiple picture in picture modes, local TF card dual synchronous recording and photography, with one channel 4K and one channel 1080P. Both serial port and network can control the camera and PTZ, supporting digital zoom. The focal lengths of visible light are 6mm and 25mm respectivel.
| 3S-6S（12V-26.2V） | 6.6w | ||
| -40°～+40° | -30°～+100° | ||
| -140°～+140° | ±0.02° | ||
| ±0.03° | One-click restore to the initial position | ||
| When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera | Support network IP, SBUS and serial port control |
| 8 Mega Pixels CMOS SENSOR | |
| 7x Digital Zoom | |
| H264, H265, video streaming local TF storage 4K/1080p | |
| 25mm lens, FOV：10.5°×7.8° |
| 2 Mega Pixels CMOS SENSOR | |
| 9x Digital Zoom | |
| H264, H265, video streaming local TF storage 1080p | |
| 6mm lens, FOV：60°× 43° |
| 16×16 pixels | 256×256 pixels | ||
| 2 seconds | 50 Pixel/Frame max | ||
| 100 targets max | Human and Vehicle | ||
| 32×32 pixels | Dynamic stabilization |

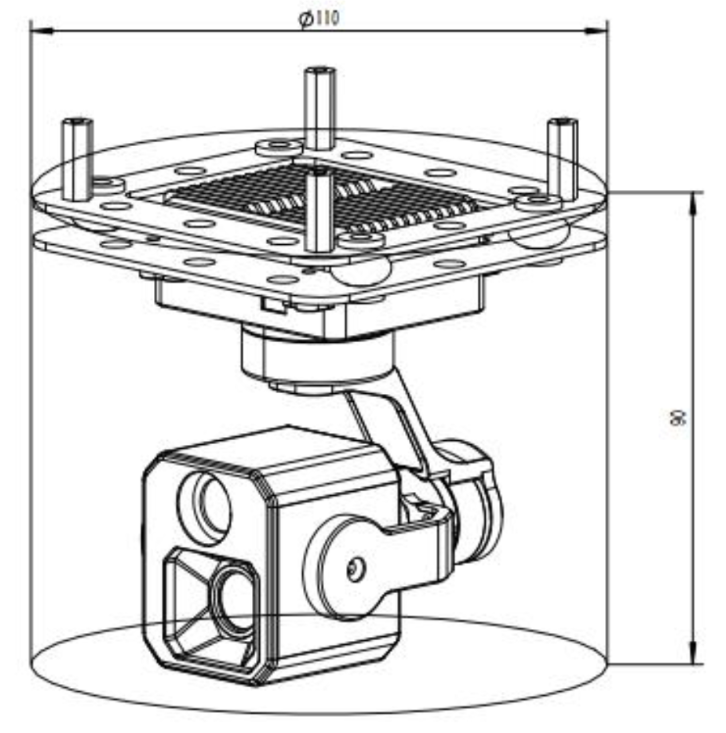

| φ:110mm H:90mm | -10℃ to +60℃ / 20% to 80% RH | ||
| -20℃ to +80℃ / 20% to 95% RH | 160±10g |
