TOPOTEK Gimbal cameraThe GIP335 is a network output camera integrated with a 9x digital zoom and a high-precision professional three-axis stabilized gimbal. The gimbal uses a Hall effect scheme, characterized by high stability, small size, light weight, and low power consumption. The visible light camera employs a high-definition SENSOR with an effective pixel of 4 million. The camera supports 1080P network RTSP streaming output. Both network and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.
| Voltage： |
DC 3S-6s |
Power： |
Dynamitic 3W |
| Roll angle action range： |
-40°～ +40° |
Pitch angle action range： |
-30°~+90° |
| Yaw angle action range： |
-130°~+130° |
Pitch and Roll Jitter Angle： |
±0.02° |
| Horizontal Jitter Angle： |
±0.03° |
One-Click Restore： |
One-click restore to the initial position |
| Adjustable Gimbal ControlSpeed： |
Gimbal rotation is speed-adaptive based on the currentspeed mode and the visible light camera magnification |
Control Methods： |
Supports network lP control, SBUS control, serial portcontrol(optional PWM control available) |
| SENSOR： |
4-megapixel high-definition CMOS SENSOR |
| Digital Zoom： |
9X digital zoom |
| Compression Storage Mode： |
H264,H265 video stream local TF storage |
| Network Output Mode： |
1080P 30fps |
| Focal Length： |
3mm
|
| Field of View (FOV)： |
FOV:D=78°H=68°V=46°
|

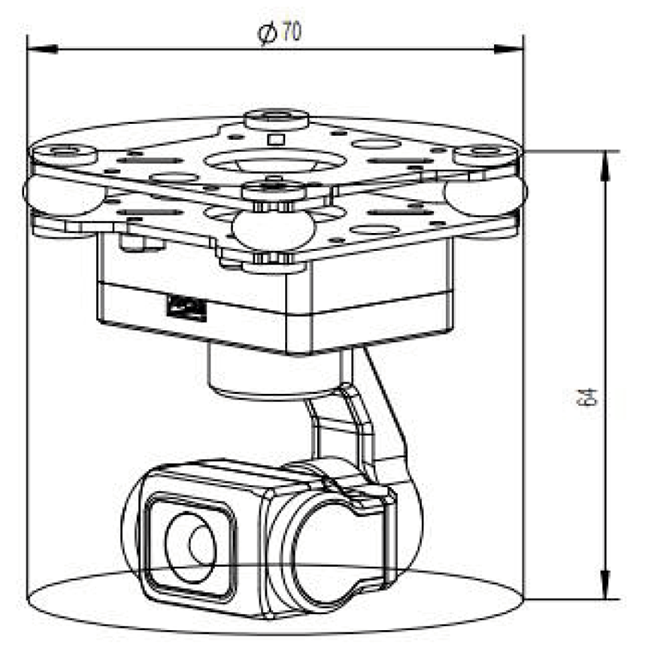

| Device Size： |
φ:70mm H:64mm |
Work Condition： |
-10℃ to +45℃ /20% to 80% RH |
| Storage Condition： |
-20℃ to +60'℃ /20% to 95% RH |
Weight (Not including dampers) |
60±10g |
