TOPOTEK Gimbal camera

EHP20S78N is a 140X hybrid zoom① three-axis starlight gimbal for drones. The FOC control scheme of the device has the characteristics of high stability, small size, light weight and low power consumption. The camera uses STARVIS2 low noise sensor with an effective pixel of 8 million; supports 4K and 1080P local TF card storage and network reading and writing, based on TOPOTEK ground station control software. EHP20S78N supports IP control, S.BUS control and UART control as well.

EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights


EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

Voltage：

   DC12V-26.2V

Power：

   Dynamic 10W

Roll Angle action range：

   -45°～ +45°

Pitch action range：

   -45°～ +120°

Yaw angle action range：

   -280°～ +280°

Pitch and Roll Angle Jitter：

   ±0.02°

Horizontal Angle Jitter：

   ±0.03°

One-click return function：

   Quick return to initial position with one click

Adjustable PTZ Speed：

   The current speed mode based on the multiple zoom of camera

Control mode：

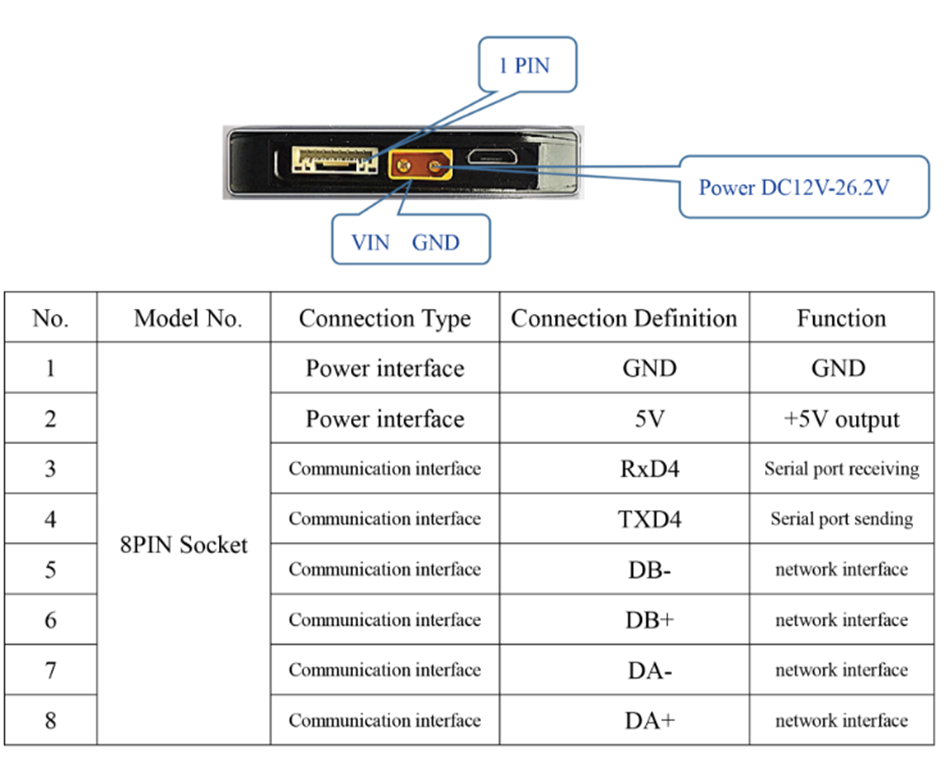

   IP and UART and S.BUS control（or PWM for Option）

EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

CMOS Size：

   1/1.8" WDR CMOS SENSOR: 8 Mega Pixels

Optical zoom：

   20X optical zoom HD lens, f=6.7±5%～125±5%mm

Focus time：

    Real-time fast focusing function, focusing time <1S

Video Output：

   IP Output 1080P, Local TF Card Storage

Field Angle(FOV)：

    D : WIDE 66.6º±5% TELE 4.0º±5%
   H : WIDE 59.6º±5% TELE 3.5º±5%
   V : WIDE 35.7º±5% TELE 2.0º±5%


EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights

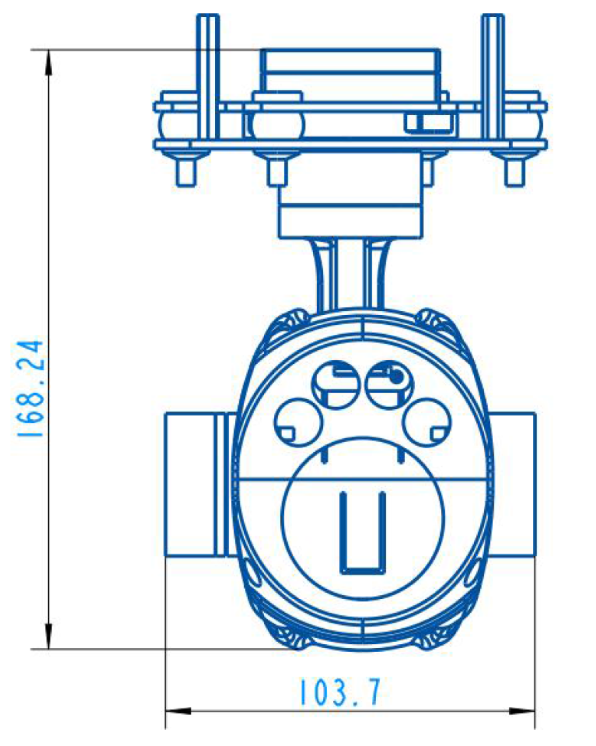

Dimensions：

   103.7mm×170.95mm×168.24mm

Operating Temperature：

   -10℃ to +55℃ / 20% to 80% RH

Storage Temperature：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   803±20g




EHP20S78N 20X Optical Zoom Gimbal Camera with Supplement Lights
