TOPOTEK Gimbal camera

  • EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

0 stars, based on 0reviews
Price:
€9083.05 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

EHP20S86G12 is a dual sensor integrated camera system that integrates a 180x mixed zoom camera, a 25mm focal length 1280×1024 infrared thermal camera and a high-precision three-axis stabilized gimbal. Ethernet RTSP streaming video output, support SBUS/UART/UDP/PWM control. PTZ adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera uses a dynamic sensor with an effective pixel width of 48MP, and the IR camera uses a 1280×1024 resolution uncooled vanadium oxide detector with a baffle design. The camera also supports picture-in-picture (PIP) mode, multiple false color modes and temperature measurement.

EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera


EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

Voltage：

   DC12～26.2V

Power：

   Dynamic 8W

Roll Angle：

   ﹣45°～ ﹢45°

Pitch Angle：

   -30°～ +100°

Yaw Angle：

   -280°～ +280°

Tilt and roll direction angle jitter：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-key return function：

   One-click automatic quick return to the initial position

Adjustable Gimbal Speed：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple.

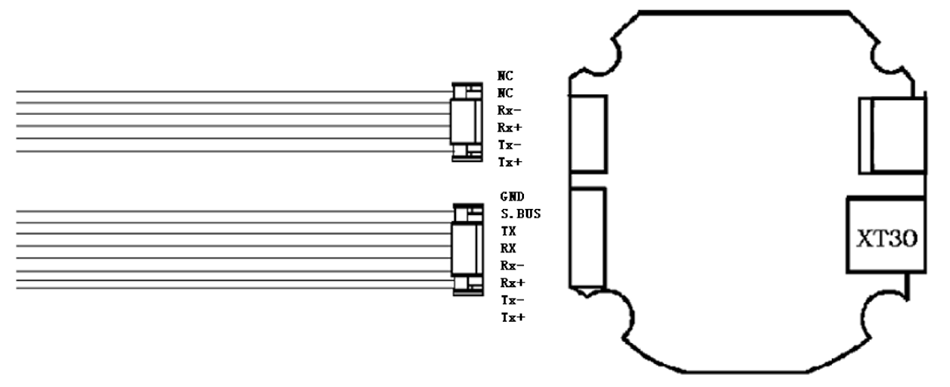

Control mode：

   Support network IP control, S.BUS control, UART control (PWM control is optional)

EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

CMOS Size：

   1/2 inch 48 million pixel wide dynamic CMOS SENSOR

Optical Zoom：

   20x HD optical zoom lens, f=6.7～125 mm ±5%

Focusing time：

   Real time focusing, fast focusing time < 1s

Video Output：

   Network output RTSP 1080P stream, local TF 4K storage

Field Angle(FOV)：

    D : WIDE 66.6º±5% TELE 4.0º±5%
   H : WIDE 59.6º±5% TELE 3.5º±5%
   V : WIDE 35.7º±5% TELE 2.0º±5%

Support Mode：

   1080P 30fps


EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

Resolution ratio：

   1280X1024 pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～14μm

Thermal sensitivity(NETD)：

   ≤40mk@25℃

Field angle：

   25mmLens，Field of view：34.2°×27.6°


EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera

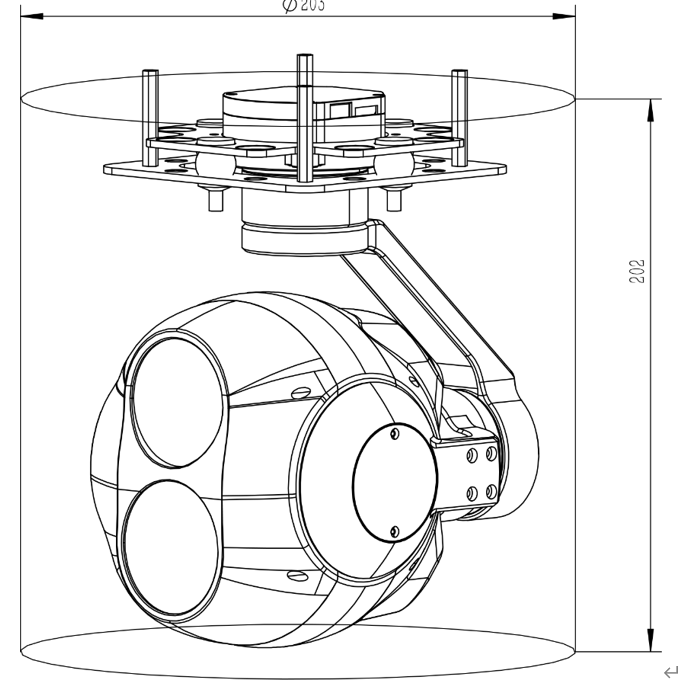

Dimensions：

   203mm×187mm

Operating Environment：

   -10℃ to +55℃ / 20% to 80% RH

Storage Condition：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   1474±20g




EHP20S86G12 20x Optical Zoom Camera + 1280 Thermal Camera
