  • EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

0 stars, based on 0reviews
Price:
$10284.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

EHP20G12L30 is a high-precision professional three-axis stabilization pod with integrated 140x hybrid zoom, 1280x1024 thermal imager with 25mm focal length, and 3000m laser ranging. This pod adopts a compact design with high stability, high integration, and low power consumption. The visible light camera uses a wide dynamic sensor with an effective pixel of 8 mega; the thermal imaging uses a vanadium oxide 1280 resolution detector with a built-in baffle. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.

EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF


EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

Voltage：

   DC12～26.2V

Power：

   Dynamic 10W

Roll angle：

   ﹣45°～ ﹢45°

Pitch Angle：

   -30°～ +110°

Yaw Angle：

    -285°～ +285°

Angle jitter in pitch and roll directions：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-click return to the center function：

   Quick return to initial position with one click

Adjustable Gimbal Speed：

   When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification

Control Mode：

   Support network IP control, serial port control, S.BUS control (PWM control is optional)

EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

CMOS Size：

   1/1.8 INCH mega pixel Wide dynamic range CMOS SENSOR

Optical Zoom：

   20x HD optical zoom lens, f=6.7～125 mm ±5%

Focus time：

   Real-time fast focus function, focusing time <1S

Field Angle（FOV）：

   D : WIDE 66。6º±5% TELE 4.0º±5%
  H : WIDE 59.6º±5% TELE 3.5º±5%
  V : WIDE 35.7º±5% TELE 2.0º±5%

Video output：

   Network output RTSP 1080P stream, local TF 1080P storage

Support Mode：

   1080P 30fps


EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

Resolution：

   1280x1024 pixel

Pixel spacing：

   12μm

Type：

   Uncooled Vanadium Oxide Detector

Wavelength range：

   8～14μm

Thermal sensitivity (NETD)：

   ≤50mk@F1.0@25℃

Field of view：

   25mm lens，Field of Angle：34.2°x 27.6°

Global temperature measurement：

   Support global temperature measurement, optional full pixel temperature saving function


EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

Infrared wavelength：

   1535±10nm

Measuring range：

   50m~3000m

Accuracy/resolution：

   ±1m；resolution≤40m


EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF

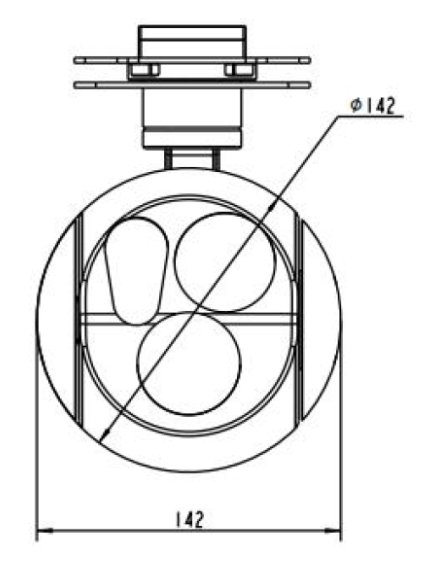

Dimensions：

   142*208.2*166.74

Working Condition：

   -10℃ to +55℃ / 20% to 80% RH

Storage Environment：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   1390±20g




EHP20G12L30 HighPerformanceThree-Sensor Giambal Camera 20X Optical Zoom + 1280x1024 IR + 3000m LRF
