TOPOTEK Gimbal camera

  • EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

0 stars, based on 0reviews
Price:
$4947.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

EHP03S86G19 is a three-in-one system with 3X optical zoom, 48MP fixed focus, and 640×512 thermal imaging high-precision professional three-axis stabilization pod. The gimbal adopts a high-precision encoder FOC control solution, which has the characteristics of high stability, small size, light weight, and low power consumption; the fixed-focus and zoom visible light cameras use a SENSOR with an effective pixel of 48 million; the thermal imaging uses a vanadium oxide detector. The system supports network RTSP picture-in-picture stream output, supports multiple picture-in-picture modes, multiple pseudo-color displays, and supports global temperature measurement functions. Both the serial port and the network S.BUS can control the camera and the gimbal, and support local TF card dual-channel video recording and photography. The focal length of this thermal imaging lens is 19mm.

EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera


EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

Voltage：

   DC 12V-26.2V

Power：

   Dynamic 8W

Roll angle range：

   -45° ～ +45°

Pitch angle range：

   -60°～ +125°

Yaw angle range：

    -150°～ +150°

Angle jitter in pitch and roll directions：

   ±0.02°

Horizontal Angle jitter：

   ±0.03°

One-click return function：

   One-click automatic quick return to the initial position

Gimbal control speed adjustable：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple

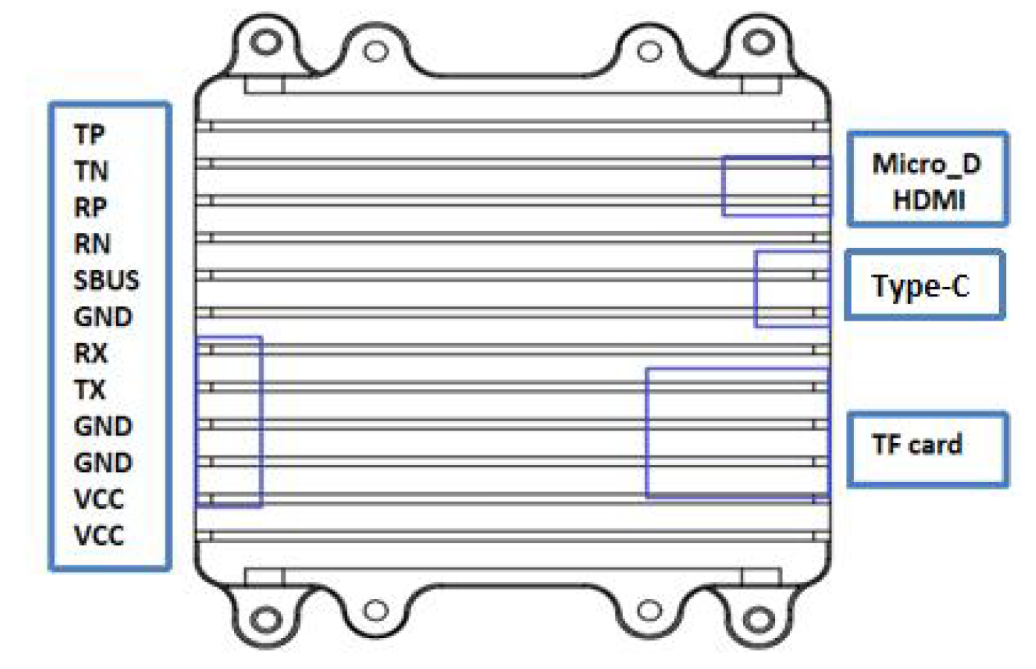

Control mode：

   Support network IP control, serial port control, S.BUS control (PWM control is optional)

EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

CMOS Size：

   1/2 inch 48 million pixel CMOS SENSOR

Optical Zoom：

   3x HD optical zoom lens,15mm(Wide)-50mm(Tele)±5%

Focus time：

    Real-time fast focus function, focusing time <1S

Video Output：

   Network HD RTSP output 1080P, video stream local TF storage

Field Angle（FOV）：

    D : WIDE 28.98º±3% TELE 9.06º±3%
   H : WIDE 23.48º±3% TELE 7.29º±3%
   V : WIDE 17.81º±3% TELE 5.49º±3%

EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

CMOS Size：

   CMOS SENSOR pixels: 48 million pixels

Digital zoom：

   Support 9x digital zoom

Compressed storage mode：

    H264，H265,Video stream local TF card storage

Network support mode：

   1080P 30fps

Field Angle（FOV）：

   FOV：120°× 94°× 70°


EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

Resolution：

   640*512

Pixel spacing：

   12μm

Type：

   Uncooled focal plane microbolometer

Wavelength range：

   8～14μm

Thermal sensitivity (NETD)：

   ≤50mk@F1.0@25℃

Field of view：

   19mm lens，angle：32.9°× 26.6°

Measurement function (optional)：

   Support global temperature measurement, optional full pixel temperature saving function


EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera

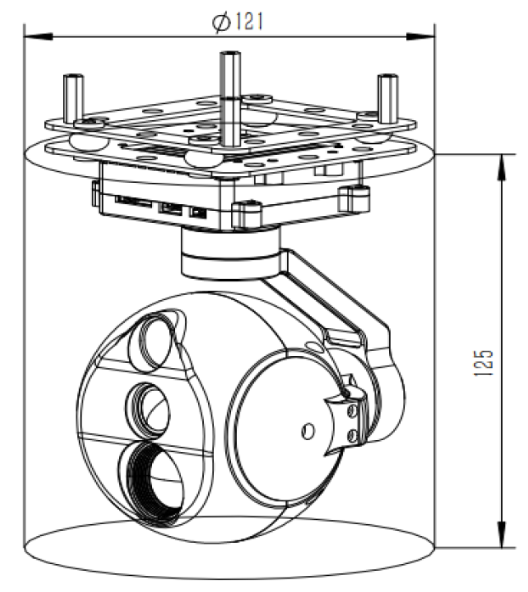

Dimensions：

   125mm×121mm

Working Condition：

   -10℃ to +60℃ / 20% to 80% RH

Storage Environment：

   -20℃ to +80℃ / 20% to 95% RH

Weight：

   370±10g




EHP03S86G19 48MP Dual-Output Triple-Sensor Small Gimbal Camera
