TOPOTEK Gimbal camera

  • EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

0 stars, based on 0reviews
Price:
$2673.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

The EHP03S86 is a dual-light integrated system featuring a 3x optical zoom and a 48-megapixel fixed-focus high-precision professional three-axis stabilized gondola. The gimbal adopts a high-precision encoder FOC control scheme, which is characterized by high stability, small size, light weight, and low power consumption. The fixed-focus and zoom visible light cameras are equipped with a 48-megapixel sensor. The system supports network RTSP picture-in-picture stream output and multiple picture-in-picture modes. Both serial port and network S.BUS can control the camera and gimbal, and it supports local TF card dual-channel video recording and photo taking.

EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera


EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

Voltage：

   DC 12V-26.2V

Power：

   Dynamic 8W

Roll Angle action range：

   -45°～+45°

Pitch action range：

   -50°～ +130°

Yaw angle action range：

   -150°～ +150°

Angle jitter in pitch and roll directions：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-click return function：

   One-click automatic quick return to the initial position

Gimbal control speed adjustable：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple

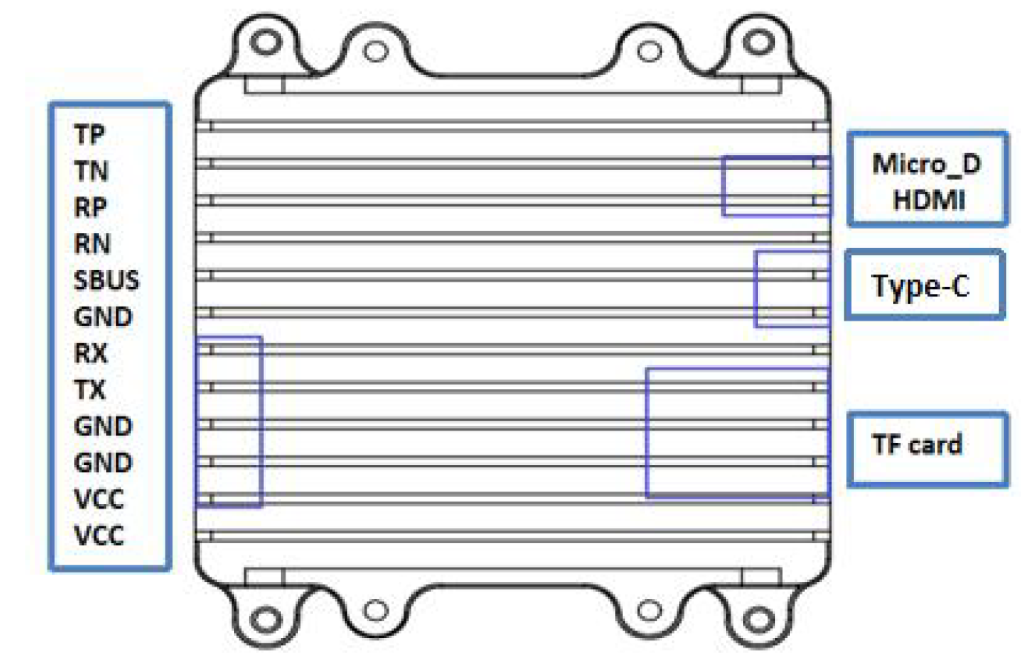

Control mode：

   Support network IP control, serial port control, S.BUS control (PWM control is optional)

EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

CMOS Size：

   1/2 inch 48 million pixel CMOS SENSOR

Optical zoom：

   3x HD optical zoom lens,15mm(Wide)-50mm(Tele)±5%

Focus time：

    Real-time fast focus function, focusing time <1S

Video Output：

   Network HD RTSP output 1080P, video stream local TF storage

Field Angle(FOV)：

    D : WIDE 28.98º±3% TELE 9.06º±3%
  H : WIDE 23.48º±3% TELE 7.29º±3%
  V : WIDE 17.81º±3% TELE 5.49º±3%


EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

CMOS Size：

   CMOS SENSOR pixels: 48 million pixels

Digital zoom：

   Support 9x digital zoom

Compressed storage mode：

   H264，H265,Video stream local TF card storage

Field of view（FOV）：

   FOV：120°× 94°× 70°

Network support mode：

   1080P 30fps


EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera

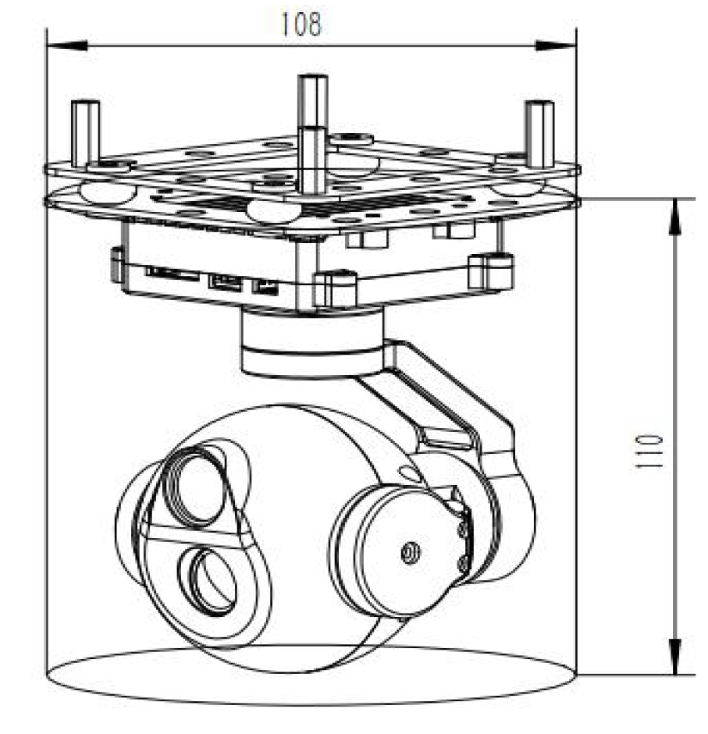

Dimensions：

   108mm×110mm

Working Condition：

   -10℃ to +45℃ / 20% to 80% RH

Stored Environment：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   290±10g




EHP03S86 48MP Dual-Output Dual-Sensor Small Gimbal Camera
