TOPOTEK Gimbal camera

  • EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

0 stars, based on 0reviews
Price:
$6309.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

EHP03G6S90D15 is a high-precision 3-axis gimbal that integrates 3x optical zoom, 1080P fixed focus, 640x512 thermal imaging, and 1500m laser rangefinder. It adopts a compact design and features high stability, high integration, and low power consumption. The visible light camera uses a 48 million effective pixels COMS sensor; the thermal imaging uses a vanadium oxide 640*512 resolution detector with a built-in baffle. The system supports network RTSP video stream output in picture-in-picture mode, various pseudo color display, and overall temperature measurement. The camera and gimbal both can be controlled via Serial port, Network, S.BUS, supports TF memory card dual-channel local recording and photography. The focal length of the thermal imaging lens is 9.1 mm.

EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

Voltage：

   DC12～26.2V

Power Supply：

   Dynamic 10W

Roll angle range：

   ﹣45°～ ﹢45°

Pitch angle range：

   -30°～ +110°

Heading angle range：

   -285°～ +285°

Angle jitter in pitch and roll directions：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-click return to center function：

   One-click automatic quick return to initial position

PTZ control speed adjustable：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple

Control method：

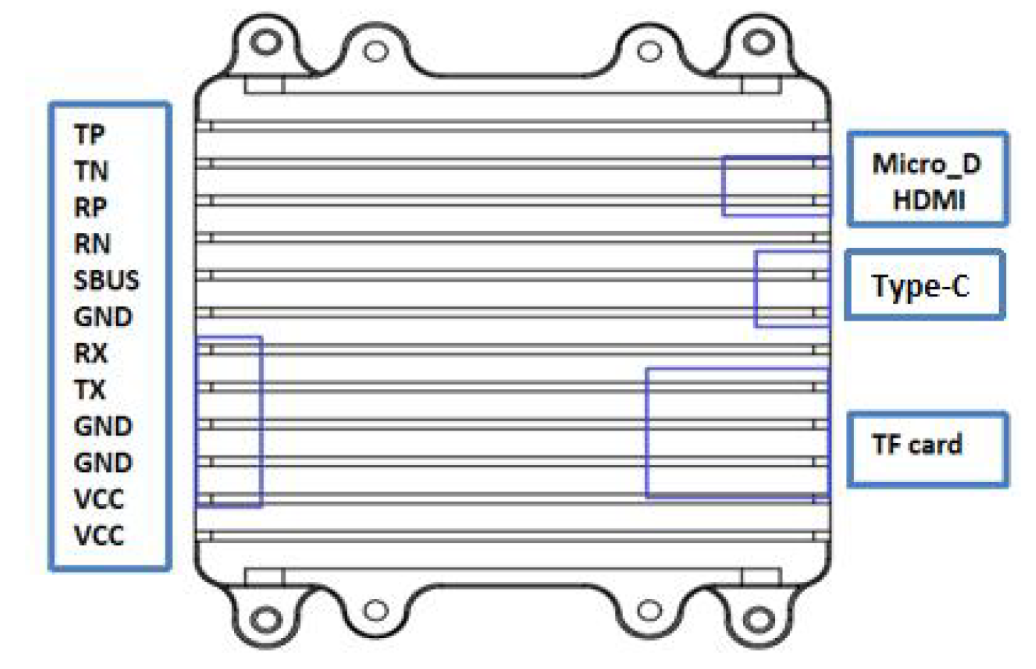

   Support network IP control, S.BUS control, serial port control (PWM control is optional)


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

CMOS Size：

   1/2 inch 48MP COMOS Sensor

Optical zoom：

   3x HD optical zoom camera, 15mm(Wide)-50mm(Tele)±5%

Focus time：

   Real-time fast focusing function, focusing time <1S

Video Output：

    Network RTSP 1080P stream,local TF card storage

Field of View（FOV）：

    D : WIDE 28.98º±3% TELE 9.06º±3%
H : WIDE 23.48º±3% TELE 7.29º±3%
V : WIDE 17.81º±3% TELE 5.49º±3%


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

CMOS Size：

   CMOS SENSOR Pixel：2MP

Digital zoom：

   Support 9x digital zoom

Compressed storage mode：

   H264，H265,Video streaming local TF storage

（FOV）：

   FOV： 94.6°× 86.6°

Support mode：

   1080P@30fps


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

Resolution：

   640*512 pixel

Pixel spacing：

   12μm

Type：

   Uncooled focal plane microbolometer

Wavelength range：

   8～12μm

Thermal sensitivity (NETD)：

   ≤50mk@F1.0

Field of view：

   9.1mm focal length，FOV：45.76°× 37.31°

Measurement Functions：

   Support global temperature measurement, optional full pixel temperature saving function


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

Infrared Wavelength：

   905nm±5nm （classⅠSafety laser）

measuring range：

   5m～1500m

Accuracy/resolution：

   ≤ 1m


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output

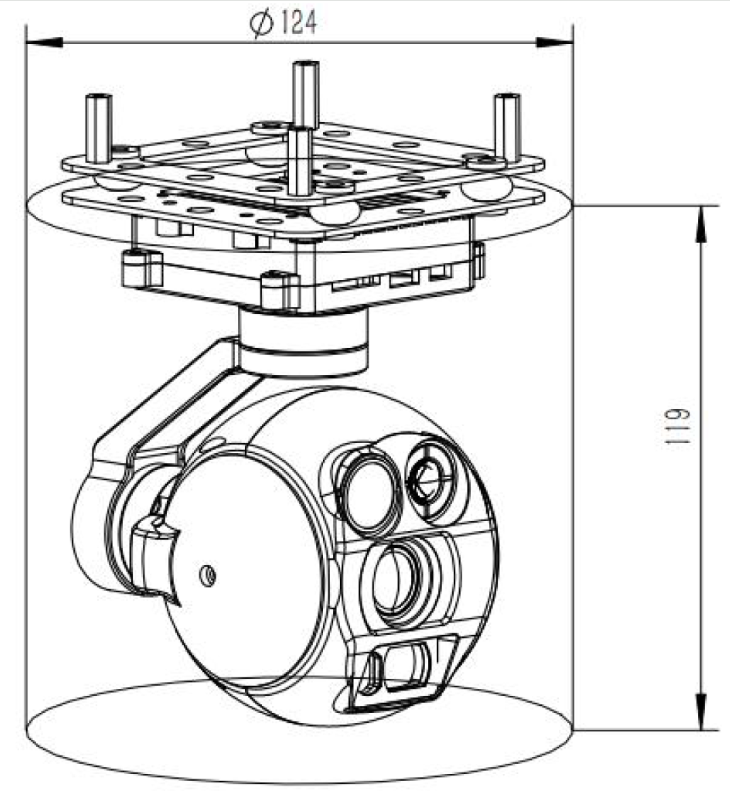

Dimensions：

   124mm×119mm/td>

Working Condition：

   -10℃ to +60℃ / 20% to 80% RH

Storage Environment：

   -20℃ to +80℃ / 20% to 95% RH

Weight：

   360±20g





EHP03G6S90D15 48MP Sensor Four in One Gimbal 3x Optical Zoom + Fixed Focus +640*512 Thermal Imaging+1.5KM Rangefinder. Network and HDMI output
