E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

0 stars, based on 0reviews

Price:

$16589.00 / piece

E40S48G12L30 is a high-precision professional three-axis stabilization pod with 180x hybrid zoom, 48MP fixed focus, 1280x1024 thermal imager with 25mm focal length, and 3000m laser range finder. This pod adopts a compact design with high stability, high integration, and low power consumption. The camera uses a SENSOR with an effective pixel of 48 million; 40x lossless zoom; thermal imaging uses a vanadium oxide 1280 resolution detector. 3000m high-precision ranging function. Provides software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and serial port can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

Voltage：	DC12～26.2V	Power Supply：	Dynamic 10W
Roll angle range：	﹣45°～ ﹢45°	Pitch angle range：	-30°～ +110°
Heading angle range：	-285°～ +285°	Angle jitter in pitch and roll directions：	±0.02°
Horizontal angle jitter：	±0.03°	One-click return to center function：	One-click automatic quick return to initial position
PTZ control speed adjustable：	When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple	Control method：	Support network IP control, S.BUS control, serial port control (PWM control is optional)

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

CMOS Size：	1/1.8 inch 8 megapixel wide dynamic range CMOS SENSOR
Optical zoom：	20x high-definition optical zoom lens, f=6.7～125 mm ±5%
Focus time：	Real-time fast focus function, focusing time <1S
Video Output：	Network output RTSP 1080P stream, local TF 1080P storage
Field of View（FOV）：	D : WIDE 66.6º±5% TELE 4.0º±5% H : WIDE 59.6º±5% TELE 3.5º±5% V : WIDE 35.7º±5% TELE 2.0º±5%
Support Mode：	1080P 30fps

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

CMOS Size：

1/2 inch 48 million pixels

Focal length：

3.5mm

Field of view：

53.2*67.2

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

Resolution：	1280x1024
Pixel spacing：	12μm
Type：	Uncooled vanadium oxide
Wavelength range：	8～14μm
Thermal sensitivity (NETD)：	≤50mk@F1.0@25℃
Field of view：	25mm lens FOV：34.2°x 27.6°
Measurement Functions：	Support global temperature measurement, optional full pixel temperature saving function
Contrast, false color：	Adjustable, multiple pseudo color modes

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

Infrared wavelength：

1535±10nm

Measuring range：

50m3000m

Accuracy/resolution：

±1m; resolution ≤40m

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

E40S48G12L30 High-performance quad-light pod 40x lossless zoom + 48M fixed focus, 1280X1024 thermal imager + 3000m laser range finder

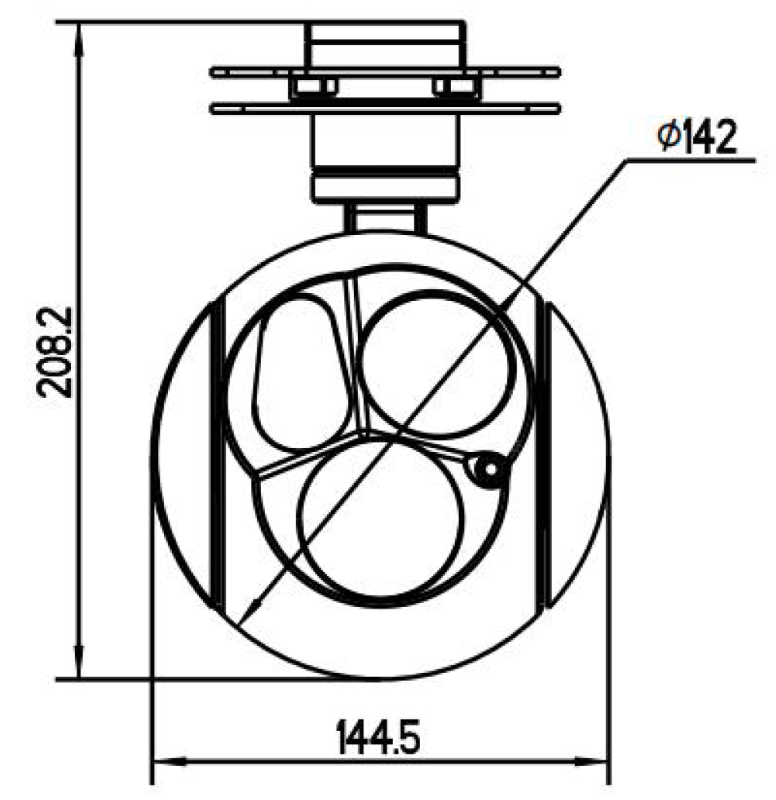

Dimensions：

208.2*144.5*176.3

Working Condition：

-10℃ to +55℃ / 20% to 80% RH

Storage Environment：

-20℃ to +60℃ / 20% to 95% RH

Weight：

1390±20 g
