TOPOTEK Gimbal camera

  • DYD415S90G645 2-axis Gimbal Camera

DYD415S90G645 2-axis Gimbal Camera

0 stars, based on 0reviews
Price:
$5715.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

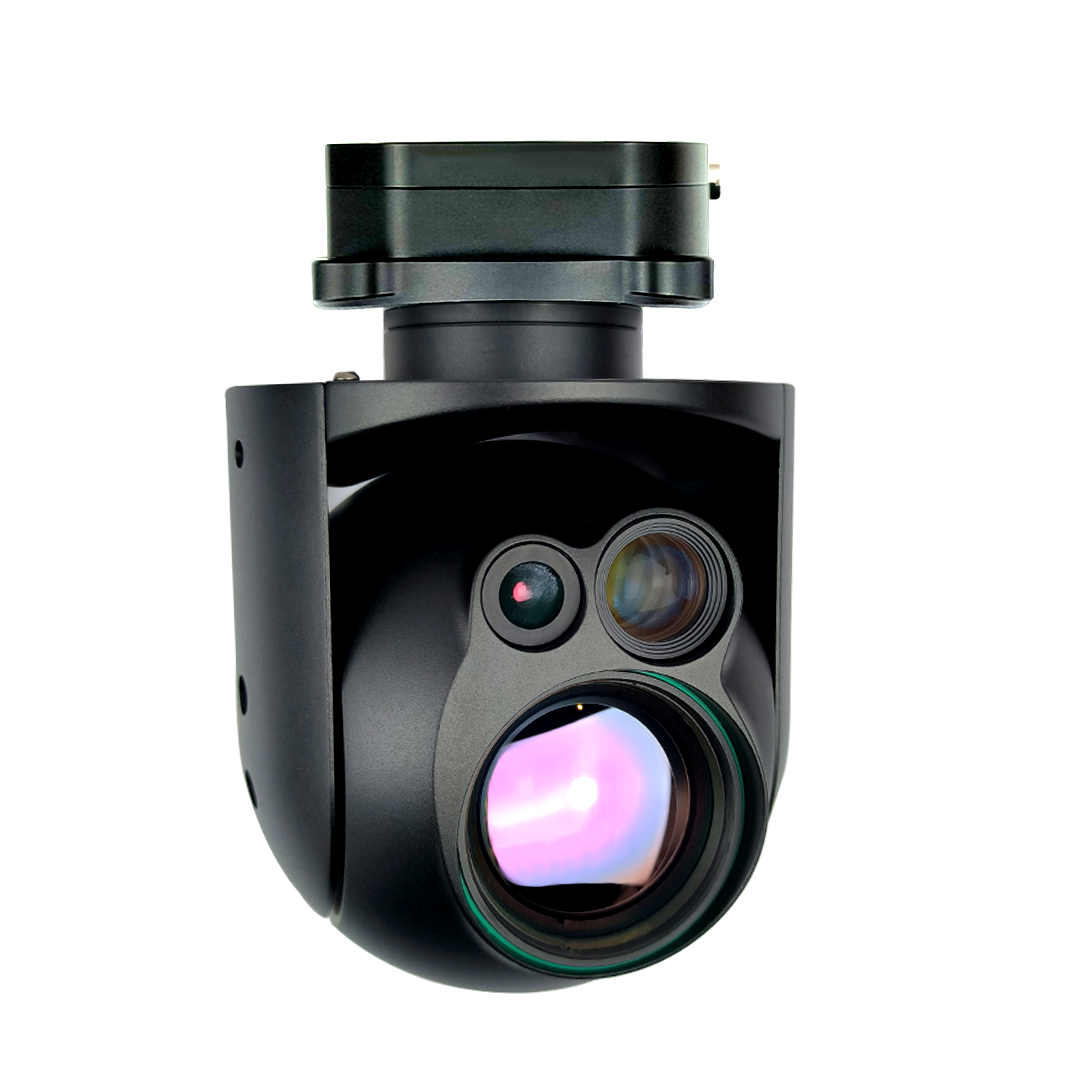

DYD415S90G645 is a three-light and two-axis stabilization small pod that integrates two visible light cameras, one of which is 8 million pixels and the other is 2 million pixels. 45mm focal length 640×512 thermal imaging module. It has the characteristics of high stability, small size, light weight and low power consumption; the system supports network RTSP stream output, three video streams can be combined into picture-in-picture output, supports multiple picture-in-picture modes, and local TF card dual-channel synchronization Video and photo taking. Serial port , network, and S.BUS can control the camera and gimbal, and support 9x digital zoom. The focal lengths of visible light are 35mm and 6mm respectively.

DYD415S90G645 2-axis Gimbal Camera


DYD415S90G645 2-axis Gimbal Camera

Voltage：

   DC 12V-26 .2V

Power：

   Dynamic 6.6w

Yaw Angle：

   -20°～+180°

Pitch Angle：

   360°

Pitch and Roll Jitter Angle：

    ±0.02 °

Horizontal Jitter Angle：

   ±0.03 °

One-Click Restore：

    One-click restore to the initial position

Adjustable Gimbal Speed：

   When the gimbal rotates, the speed is adapted based on the current speed mode the visible light camera multiple


DYD415S90G645 2-axis Gimbal Camera

CMOS Size：

   CMOS SENSOR ：8MP

Dogital zoom：

   Suport 7x digital zoom

Compressed storage mode：

   H264，H265,Video streaming local TF card storage 4K

Field Angle（FOV）：

   35mm focal-length, FOV： 10.1 °x 7.6 °


DYD415S90G645 2-axis Gimbal Camera

CMOS Size：

   CMOS SENSOR ：2MP

Dogital zoom：

   Suport 9x digital zoom

Compressed storage mode：

   H264，Video streaming local TF card storage 4K

Field Angle（FOV）：

   6mm focal-length，FOV： 60 °x 43 °


DYD415S90G645 2-axis Gimbal Camera

Resolution：

   640×512 pixel

Pixel spacing：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength range：

   8～14μm

Thermal sensitivity (NETD)：

   ≤50mk@25℃@F1.0

Field of view：

   45mm focal-length，FOV：9.8° ×7.8°

Global temperature measurement：

   Support global temperature measurement, optional full-pixel temperature saving function


DYD415S90G645 2-axis Gimbal Camera

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DYD415S90G645 2-axis Gimbal Camera

Dimensions：

   φ :148mm H:136mm

Working Condition：

   -10℃ to +55℃ / 20% to 80% RH

Storage Environment：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   510±10g




DYD415S90G645 2-axis Gimbal Camera
