TOPOTEK Gimbal cameraDYD415S90G609 is a high-precision professional 2-axis stabilized triple sensor gimbal integrated with two visible light cameras which are 25mm and 6mm, and one 9.1mm 640*512 thermal. The FOC control scheme of the device has the characteristics of high stability, high integration and low consumption. The visible light movement adopts two WDR SENSORS with 8 mega pixels and 2 mega pixels. With TOPOTEK ground station control software, the system supports picture in picture switch modes, multiple pseudo colors switching, local TF storage and visible light and thermal videos recording synchronously. DYD415S90G609 supports IP control, S.BUS control and UART① control as well.
| Voltage： |
DC12～26.2V |
Power： |
Dynamic 5W |
| Pitch Angle Range： |
-25 °～+110 ° |
Yaw Angle Range： |
-145 °～+145 ° |
| Horizontal angle jitter： |
±0.03° |
Angle jitter in pitch and roll direction： |
±0.02° |
| Adjustable PTZ Speed： |
The current speed mode based on the multiple zoom of camera |
One click return function： |
One click automatic quick return to the initial position |
| CMOS Size： |
1/2.8 " WDR CMOS SENSOR: 8 Mega Pixels
|
| Digital Zoom： |
7X digital zoom |
| Storage Mode： |
H264，H265; 4K Local TF Card Storage |
| Field Angle（FOV）： |
25mm lens; FOV: 10.5°x 7.8°
|
| CMOS Size： |
WDR CMOS SENSOR: 2 Mega Pixels
|
| Digital Zoom： |
9X digital zoom |
| Storage Mode： |
H264，H265; 1080P Local TF Card Storage |
| Field Angle（FOV）： |
6mm lens，FOV：60°x 43°
|
| Resolution： |
640×512 Pixels |
| Pixel spacing： |
12μm |
| Type： |
Uncooled Infrared Microbolometer Camera |
| Wavelength range： |
8～14μm |
| Thermal sensitivity (NETD)： |
≤50mk@25℃@F1.0 |
| Field of view： |
9.1mm lens，FOV：48.7 ° ×38.6 ° |
| Measurement Functions： |
Support showing the center temperature, highest temperature and lowest temperature;Support temperature data storage and display for optional
|
| Min tracking target size： |
16×16 pixels |
Max tracking target size： |
256×256 pixels |
| Target Memory Time： |
2 seconds |
Tracking speed： |
50 Pixel/Frame max |
| Simultaneous detection qty： |
100 targets max |
Recognized categories： |
Human and Vehicle |
| Min detection target size： |
32×32 pixels |
Debounce： |
Dynamic stabilization |

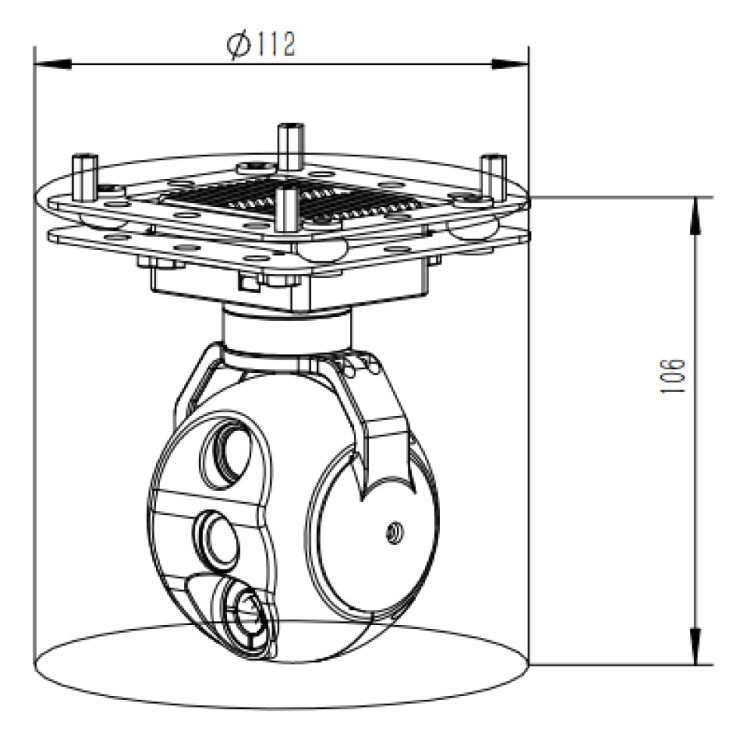

| Dimensions： |
φ :112mm H:106mm |
Working Condition： |
-10℃ to +55℃ / 20% to 80% RH |
| Storage Environment： |
-20℃ to +60℃ / 20% to 95% RH |
Weight： |
210±10 g |
