DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

0 stars, based on 0reviews

Price:

$1676.00 / piece

DIY10N800 is a dual system integrating a 90x mixed zoom daytime sensor, an 850nm infrared laser illumination module and a high-precision professional three-axis stabilized gimbal. It adopts ethernet RTSP output and ethernet control. The gimbal adopts high-precision encoder FOC control scheme and has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera uses a wide dynamic SENSOR with an effective pixel of 2 million. Ethernet and serial port as well as S.BUS can control the camera and gimbal, and it supports local TF card storage.

DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

Voltage：	DC12V-26.2V	Power：	Dynamic 16W
Roll Angle action range：	-45°～ +45°	Pitch action range：	-30°～ +95°
Yaw angle action range：	-295°～ +295°	Angle jitter in pitch and roll direction：	±0.02°
Horizontal Angle jitter：	±0.03°	One-click return function：	Quick return to initial position with one click
Adjustable Gimbal Speed：	When the gimbal rotates, speed adaptation is based on the current speed mode and visible light camera magnification	Control mode：	IP and UART command control, SBUS control (PWM control optional )

DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

CMOS Size：	1/2.8 inch 2M Pixels Wide CMOS SENSOR
Optical zoom：	10 x HD optical zoom lens, f=5.15±5%～47.38±5%mm
Focus time：	Real-time fast focusing function, focusing time <1S
Video Output：	Ethernet RTSP video output at 1080P and record video data on local TF card
Field Angle(FOV)：	D : WIDE 69.5º ±5% TELE 7.95º ±5% H : WIDE 61.5º ±5% TELE 7.00º ±5% V : WIDE 35.0º ±5% TELE 3.97º ±5%
Support Mode：	1080P 30fps

DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

Central Wavelength：

850nm± 8nm

Minimum Emission Angle：

2°±0.2°

Maximum Emission Angle：

52° ± 2°

DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

DIY10N800 90x Hybrid zoom +850nm infrared laser illumination Ethernet Output Small Gimbal

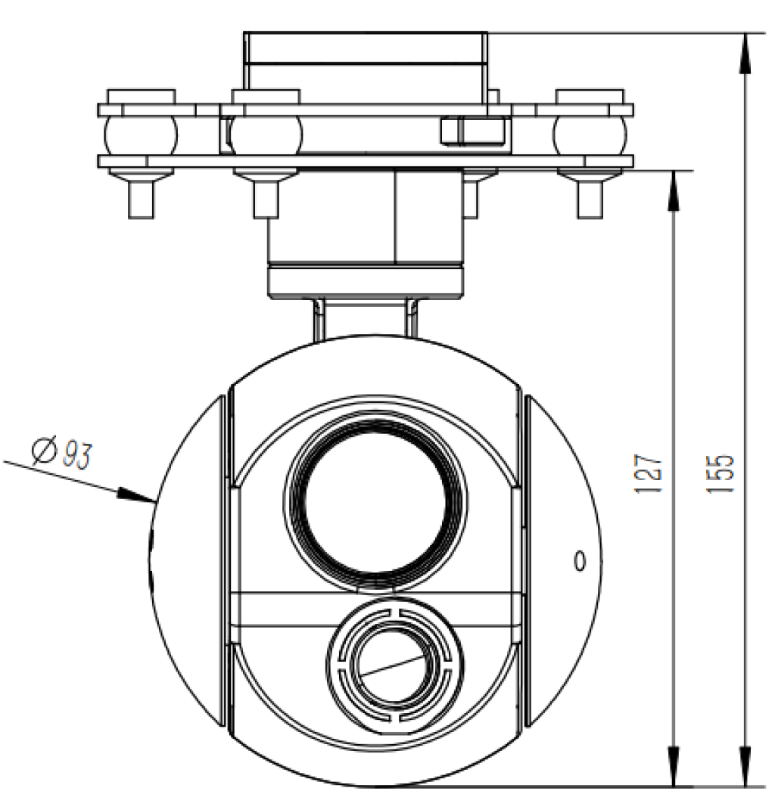

Dimensions：

144mm×155mm

Work environment：

-10℃ to +45℃ / 20% to 80% RH

Storage environment：

-20℃ to +60℃ / 20% to 95% RH

Weight：

590±20g
