DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

0 stars, based on 0reviews

Price:

$2780.00 / piece

DIY10L12 is a zoom dual-optical integrated system integrating 90 times hybrid zoom, 1200-meter laser ranging module, and high-precision professional three-axis stabilization pod. It uses network IP, HDMI dual output, IP control, and the pan/tilt adopts high-precision The encoder FOC control scheme has the characteristics of high stability, small size, light weight and low power consumption; the visible light camera uses a wide dynamic SENSOR with 2 million effective pixels. Serial port , S.BUS and network can control the camera and PTZ, and support local TF dual-channel video and photo taking.

DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

Voltage：	DC 12V-26.2V	Power：	Dynamic 6W
Roll Angle action range：	-45°～ +45°	Pitch action range：	-30°～ +95°
Yaw angle action range：	-295°～ +295°	Pitch and Roll Jitter Angle：	±0.02°
Horizontal jitter Angle：	±0.03°	One-click return function：	One-click to return to the initial position
PTZ Speed adjustable：	When the gimbal rotates, it performs speed adaptation based on the current speed mode and visible light camera multiple	Control mode：	Support Network,IP ,Network Sbus control（PWM optional）

DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

CMOS Size：	1/2.8inch 200MP Effective pixels CMOS SENSOR
Optical zoom：	10x HD Optical zoom lens f=5.15±5%～47.38±5%mm
Focus time：	Real-time fast focusing function,focusing time<1S
Video Output：	Network HD RTSP output 1080P,Video stream local TF storage
Field Angle(FOV)：	D : WIDE 69.5º±5% TELE 7.95º±5% H : WIDE 61.5º±5% TELE 7.00º±5% V : WIDE 35.0º±5% TELE 3.97º±5%

DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

Infrared Wavelength：

905nm (class 1 laser)

Measuring range：

5～1200m

Accuracy：

±1m

DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Dynamic stabilization

DIY10L12 90x Hybrid zoom + 1200m ranging dual output small

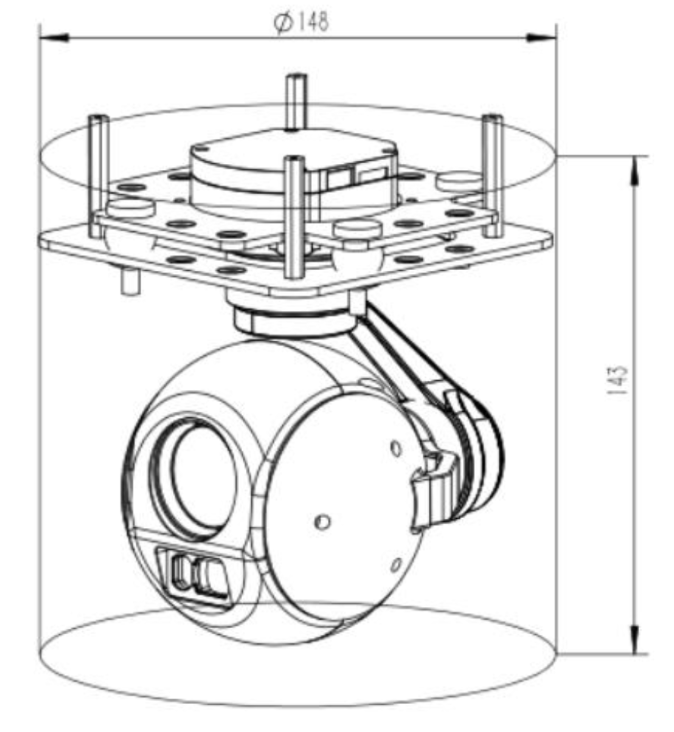

Dimensions：

143mm×148mm

Working Condition：

-10℃ to +45℃ / 20% to 80% RH

Stored Environment：

-20℃ to +60℃ / 20% to 95% RH

Weight：

460±20g
