TOPOTEK Gimbal camera

DIY10G619 is a drone gimbal payload which integrating 90x Hybrid zoom, 2MP EO camera, with 19mm lens 640x512 IR camera, and 3-axis stabilized PTZ. It adopts Ethernet output. The EO camera uses a wide dynamic sensor with 2 mega effective pixels; The IR camera adopts 640x512 resolution vanadium oxide detector with baffle design. The system supports picture-in-picture modes, pseudo-color switching. The UART and IP can synchronously control the camera and PTZ, and support local TF storage.

DIY10G619-E 10x optical zoom +640 thermal imaging IP output


DIY10G619-E 10x optical zoom +640 thermal imaging IP output

Voltage：

   DC12～26.2V

Power：

   Dynamic 6.5W

Roll Angle：

   -45°～ +45°

Pitch Angle：

   -30°～ +100°

Yaw Angle：

   -285°～ +285°

Tilt and roll direction angle jitter：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-Click Restore：

   One-click restore to the initial position

DIY10G619-E 10x optical zoom +640 thermal imaging IP output

CMOS Size：

   1/2.8 inch2 mega effective pixels CMOS SENSOR

Optical Zoom：

   10x HD optical zoom lens, f=5.15±5%～47.38±5%mm

AF Time：

   Real time fast focusing, focusing time < 1s

Video Output：

   IP HD RTSP output 1080P, video stream local TF storage

Field Angle(FOV)：

    D : WIDE 69.5º±5% TELE 7.95º±5%
   H : WIDE 61.5º±5% TELE 7.00º±5%
   V : WIDE 35.0º±5% TELE3.97º±5%

Support Mode：

   1080P 30fps


DIY10G619-E 10x optical zoom +640 thermal imaging IP output

Resolution ratio：

   640×512 pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～14μm

Thermal sensitivity(NETD)：

   ≤50mk@25℃@F1.0

Contrast, pseudo color：

   Adjustable, multiple pseudo color modes

Measurement function (optional)：

   Center point, Lowest and Highest temperature display; Support global temperature measurement

Field angle：

   19mm lens，FOV：22.9°×18.4°


DIY10G619-E 10x optical zoom +640 thermal imaging IP output

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Gyroscope stabilization


DIY10G619-E 10x optical zoom +640 thermal imaging IP output

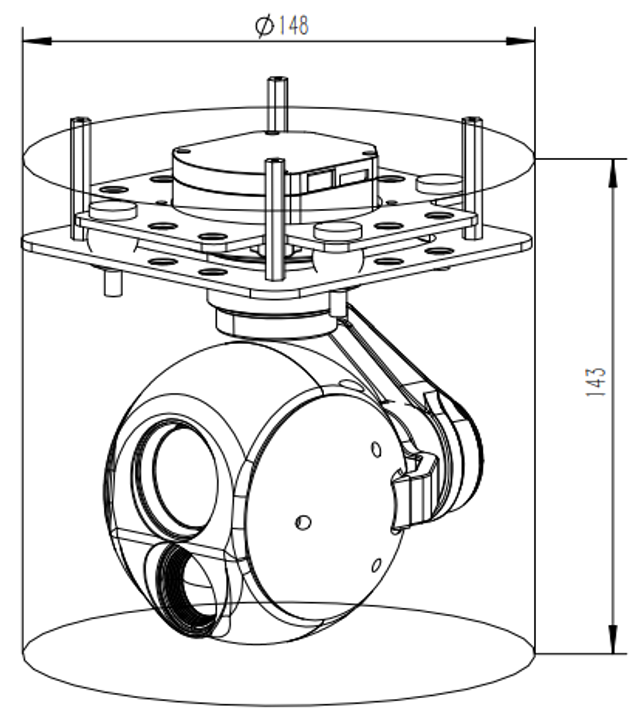

Dimensions：

   φ:148mm H:143mm

Work Condition：

   -10℃ to +60℃ / 20% to 80% RH

Storage Condition：

   -20℃ to +80℃ / 20% to 95% RH

Weight：

   525±20g
