DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

0 stars, based on 0reviews

Price:

$2780.00 / piece

DIY10G207-E is a 90x hybrid zoom electronic stabilization camera gimbal that integrates a 7mm lens 256 × 192 vanadium oxide infrared thermal imager and high-precision three-axis stability. It supports IP and HDMI output, and has the characteristics of high stability, compact size, light weight, and low power consumption. The visible light camera uses a 200M pixel WDR sensor, supports serial port, S.BUS, and IP control, and uses TF card storage for backup. It also supports various PIP modes, pseudo color modes, and global temperature measurement.

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

Voltage：	DC 12V-26.2V	Power：	Dynamic 6.5W
Roll Angle action range：	-45°～ +45°	Pitch action range：	-45°～ +100°
Yaw angle action range：	-280°~ +280	Tilt and roll direction angle jitter：	±0.02°
Horizontal angle jitter：	±0.03°	One-key return function：	Quick return to initial position with one click
Adjustable PTZ Speed：	The current speed mode based on the multiple zoom of camera	Control Modes：	IP、UART、SBUS(or PWM for Option)

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

SENSOR：

1/2.8 inch 2 mega pixels wide dynamic CMOS SENSOR

Optical Zoom：

10x HD optical zoom lens, f=5.15±5%～47.38±5%mm

AF Time：

Real time fast focusing, focusing time < 1s

Video Output：

RTSP stream IP network output, 1080P video stream local TF card storage

Local Record：

photos and videos storage on local TF card; 1080P video stream real-time output

Field Angle (FOV)：

D : WIDE 69.5º±5% TELE 7.95º±5%

H : WIDE 61.5º±5% TELE 7.00º±5%

V : WIDE 35.0º±5% TELE 3.97º±5%

Support Mode：

1080P 30fps

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

Resolution ratio：

256x192 pixel

Pixel Spacing：

12μm

Type：

Uncooled vanadium oxide infrared thermal imager

Wavelength Range：

8～14μm

NETD：

≤65mk@25℃@F1.0

Field angle：

7mm lens,FOV:25°x18.8°

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Gyroscope electronic anti shake

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization

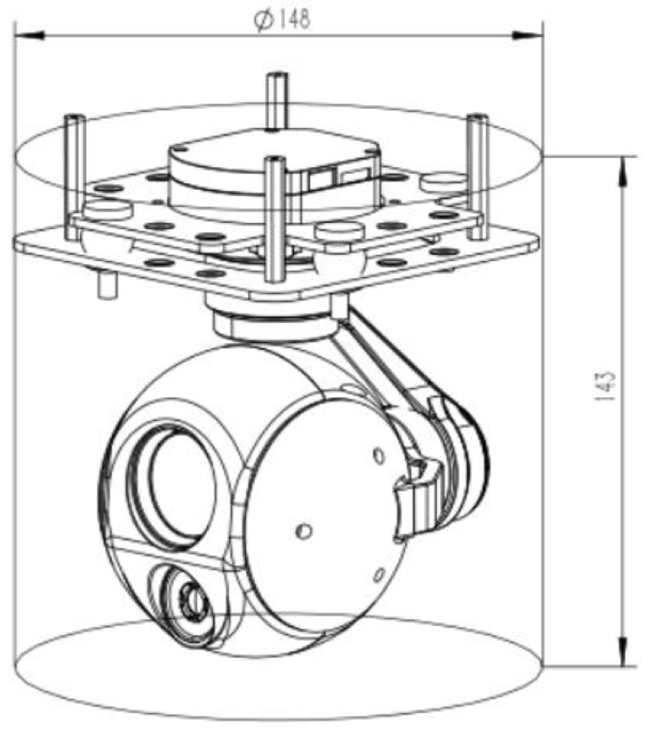

Device Size：

φ148mm H:143mm

Working Condition：

-10'℃ to +55℃ /20% to 80% RH

Stored Environment：

-20℃ to +60℃ / 20% to 95% RH

Weight：

470+20g

DIY10G207-E 10X Optical Zoom + 256 Thermal Camera Dual Outputs Mini，Electronic Image Stabilization
