TOPOTEK Gimbal camera

  • DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

0 stars, based on 0reviews
Price:
$7901.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

DIY10G12 is a dual sensor integrated camera system that integrates a 90x mixed zoom ①visible light camera, 25mm focal length 1280*1024 infrared thermal camera and a high-precision three-axis stabilizing PTZ. Ethernet RTSP streaming video output, support SBUS/UART/UDP/PWM control. PTZ adopts high precision encoder FOC control scheme, which has the characteristics of high stability, small size, light weight and low power consumption. The visible light camera adopts high-definition SENSOR with an effective pixel count of 2 million, and the thermal camera uses a 1280*1024 resolution uncooled vanadium oxide detector with a baffle design. The camera also supports picture-in-picture (PIP) mode, multiple false color modes and temperature measurement. You can control the camera and PTZ simultaneously using the serial port and network. Supports distance measurement data reading,local TF storage and network file read/write operations, dual channel synchronous recording.

DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output


DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

Voltage：

   DC12～26.2V

Power：

   Dynamic 6W

Pitch Angle：

   -20°～+110°

Yaw Angle：

   600° rotation

Gimbal mode：

   one click centering, lock/follow mode

Tilt and roll direction angle jitter：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

Control Modes：

   Speed adaptive and controllable, external control via network or serial port

DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

CMOS Size：

   1/2.8 INCH 2 mega pixel wide dynamic CMOS SENSOR

Optical Zoom：

   10x HD optical zoom lens, f=5.15±5%~47.38±5%mm

AF Time：

   Real time fast focusing, focusing time < 1s

Video Output：

   Network output RTSP 1080P stream, local TF 1080P storage

Field Angle(FOV)：

    D : WIDE 69.5º±5% TELE 7.95º±5%
   H : WIDE 61.5º±5% TELE 7º±5%
   V : WIDE 35º±5% TELE 3.97º±5%

Support Mode：

   1080P 30fps


DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

Resolution ratio：

   1280X1024 pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～12μm

Thermal sensitivity(NETD)：

   ≤50mk@F1.0

Contrast, pseudo color：

   Adjustable, multiple pseudo color modes

Field angle：

   25mmLens，Field of view：34.2°×27.6°


DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output

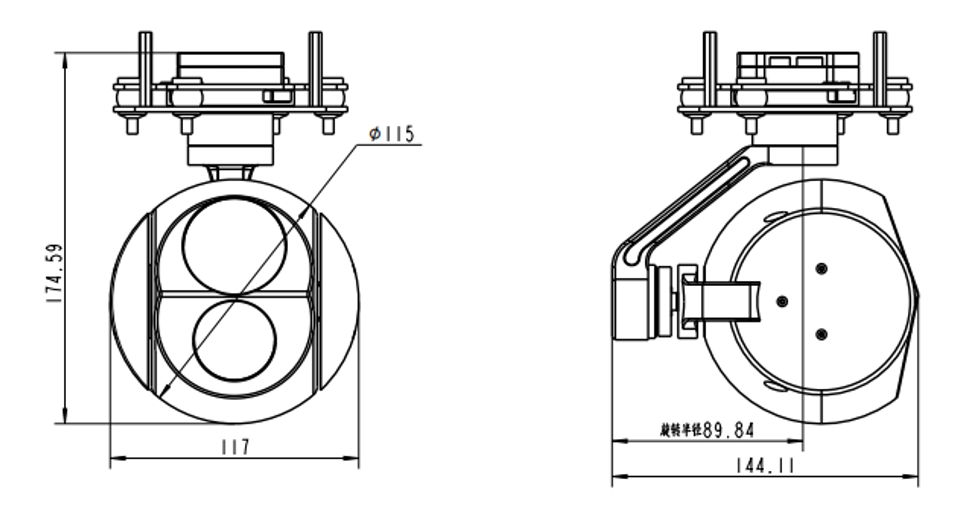

Dimensions：

   117mm * 145mm*175mm

Operating Environment：

   -10℃ to +55℃ / 20% to 80% RH

Storage Condition：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   770±20g




DIY10G12 10x Optical Zoom + 1280*1024 Thermal dual light gimbal. IP output
