TOPOTEK Gimbal camera

  • DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

0 stars, based on 0reviews
Price:
$10876.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

DIP20G12A is a zoom dual light system that integrates a 140x hybrid zoom camera, a 35mm focal length 1280 × 1024 thermal imaging module, and a high-precision professional three-axis stabilization pod. It uses network IP and HDMI dual outputs, IP control, and a high-precision encoder FOC control scheme for the pan tilt zoom. It has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera adopts high sensitivity and high dynamic SENSOR with an effective pixel count of 8 million; Thermal imaging uses a 1280 × 1024 resolution vanadium oxide detector. The system supports network RTSP picture in picture stream output, supports multiple picture in picture modes, multiple pseudo color displays, and can control the camera and gimbal through both serial port and network. It also supports local TF dual channel recording and photography.

DIP20G12A 20x optical zoom+1280 thermal imaging single output pod


DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

Voltage：

   DC12～26.2V

Power：

   Dynamic 8W

Roll Angle：

   ﹣45°～ ﹢45°

Pitch Angle：

   -30°～ +100°

Yaw Angle：

   360°

Tilt and roll direction angle jitter：

   ±0.02°

Horizontal angle jitter：

   ±0.03°

One-key return function：

   One-click automatic quick return to the initial position

Adjustable Gimbal Speed：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple.

Control mode：

   Support network IP control, S.BUS control, UART control (PWM control is optional)

DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

CMOS Size：

   1/1.8 INCH 8 mega pixel wide dynamic CMOS SENSOR

Optical Zoom：

   20x HD optical zoom lens, f=6.7～125 mm ±5%

Focusing time：

   Real time fast focusing, focusing time < 1s

Video Output：

   Network output RTSP 1080P stream, local TF 1080P storage

Field Angle(FOV)：

    D : WIDE 66.6º±5% TELE 4.0º±5%
   H : WIDE 59.6º±5% TELE 3.5º±5%
   V : WIDE 35.7º±5% TELE 2.0º±5%

Support Mode：

   1080P 30fps


DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

Resolution ratio：

   1280X1024 pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～14μm

Thermal sensitivity(NETD)：

   ≤40mk@25℃

Field angle：

   35mm lens，FOV：24.4°*19.8°


DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DIP20G12A 20x optical zoom+1280 thermal imaging single output pod

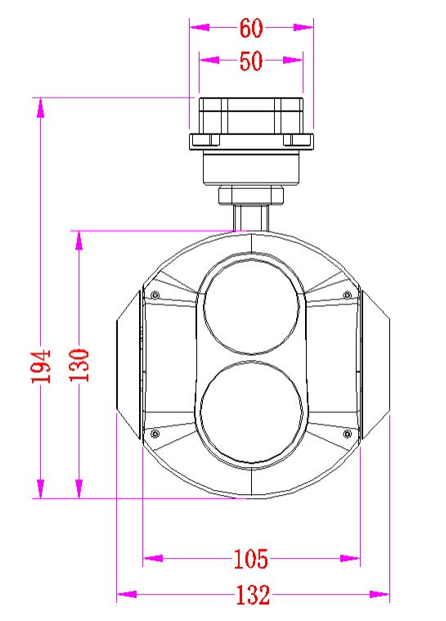

Dimensions：

   132mm×60mm×194mm

Operating Environment：

   -10℃ to +55℃ / 20% to 80% RH

Storage Condition：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   1474±20g




DIP20G12A 20x optical zoom+1280 thermal imaging single output pod
