  • DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

0 stars, based on 0reviews
Price:
$8883.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

DIP04G12N is a high-precision professional three-axis stabilized gimbals with integrated 28x hybrid zoom, 1280*1024 thermal imaging with 25mm focal length and supplementary lights. This gimbals adopts compact design, featuring high stability, high integration and low power consumption. The visible light camera uses an 8 million effective pixel HD night vision sensor. Thermal imaging uses a 25mm lens, vanadium oxide 1280*1024 resolution detector with built-in shutter; LED supplementary lights. Provides software ground station, supports picture in picture display of dual video streams, network and serial port can directly control the gimbals camera, distance measurement data reading, support local TF storage and network file read/write operations, support dual-channel synchronous recording, support multiple picture in picture modes and pseudo-color switching.

DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights


DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

Voltage：

   DC 12V-26.2V

Power：

   Static 6w

Pitch Angle：

   -30～+120°jitter ±0.02°

Yaw Angle：

   600°rotation jitter ±0.03°

Gimbal mode：

    Quick return to initial position with one click， lock head/following mode

Control method：

   Speed adaptive controllable, external control by network or serial port


DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

CMOS Size：

   1/1.2 inch 8 million pixel wide dynamic CMOS sensor

Optical zoom：

   4x HD optical zoom lens, f=15.16±5%~48.65±5%mm

Focus time：

   Real-time fast focus function, focusing time <1s

Video output：

   Network output RTSP 1080P stream and 480P stream, local TF 1080P storage

Field Angle（FOV）：

   D : WIDE 48.4º±5% TELE 14.8º±5%
  H : WIDE 42.2º±5% TELE 12.9º±5%
  V : WIDE 23.7º±5% TELE 7.3º±5%

Function：

 supplementary lights, effective distance 20 meters


DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

Resolution：

   1280*1024 pixel

Pixel spacing：

   12μm

Type：

   Uncooled Focal Plane Microbolometer

Wavelength range：

   8～12μm

Thermal sensitivity (NETD)：

   ≤50mk@F1.0

Field of view：

   25mm lens, angle: 34.2° × 27.6°

Measurement function (optional)：

   Center point, highest and lowest temperature display temperature function; global temperature measurement


DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DIP04G12N Three-in-one Gimbal Camera with 28x hybrid zoom+1280*1024thermal imaging+supplementary lights

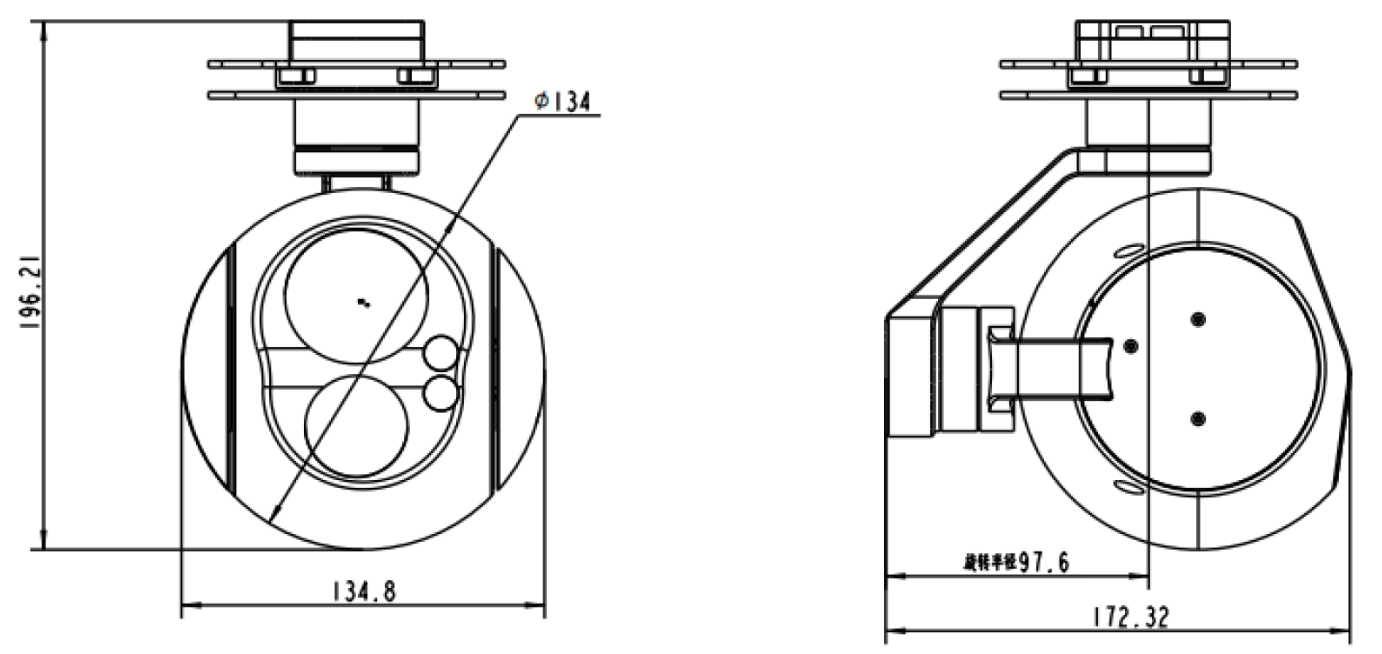

Dimensions：

   135mm×171mm×192mm

Working Condition：

   -10℃ to +50℃ / 20% to 80% RH

Storage Environment：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   1230±20g
