DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

0 stars, based on 0reviews

Price:

$5518.00 / piece

DHU290M609 is a fixed-focus dual-sensor integrated system that integrates 1080P fixed focus, 9.1mm 640×512 thermal imaging, and a high-precision professional three-axis stabilization gimbal camera. It uses network IP、HDMI dual output, and the gimbal uses a high-precision encoder FOC control solution. It has the characteristics of high stability, small size, light weight, and low power consumption; the visible light camera uses a SENSOR with an effective 2 mega pixel. The gimbal and camera can be controlled by the serial port, S.BUS, and network, and supports local TF dual-channel video recording and photography.

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

Voltage：	DC 12V-26.2V	Power：	Dynamic 5.5w
Pitch Angle action range：	-40°~ +100°	Yaw Angle action range：	-140°~ +140°
Roll Angle action range：	-45°~ +45°	Tilt and roll direction angle jitter：	±0.02°
Horizontal angle jitter：	±0.03°	One-key return function：	One-click automatic quick return to the initial position
Gimbal control speed adiustable：	The speed adaption is carried out based on the current speed mode and themultiple of the visible light camera	Control mode：	Support network IP control ,serial port and S.BUS control

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

CMOS Size：	1/2.8 inch 2 mega pixel Wide dynamic range CMOS SENSOR
Digital zoom：	Support 9x digital zoom
Video Output：	Network HD RTSP output 1080P, video stream local TF storage
Field of view(FOV)：	6mm lens FOV：49.8°× 29.3°

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

Resolution ratio：

640×512 pixel

Space between pixels：

12μm

Type：

Uncooled focal plane microcalorimeter

Wavelength Range：

8～14μm

Thermal sensitivity(NETD)：

≤50mk@25℃@F1.0

Field angle：

9mm camera lens, FOV：48.3° 38.7°

Measurement function：

Support global temperature measurement and optional full pixel temperature saving function

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

Min tracking target size：	16×16 pixels	Max tracking target size：	256×256 pixels
Target Memory Time：	2 seconds	Tracking speed：	50 Pixel/Frame max
Simultaneous detection qty：	100 targets max	Recognized categories：	Human and Vehicle
Min detection target size：	32×32 pixels	Debounce：	Gyroscope stabilization

DHU662G609P-E 1080P Prime lens visible light +640 thermal imaging 3-Axis Gimbal, HDMI and IP dual output

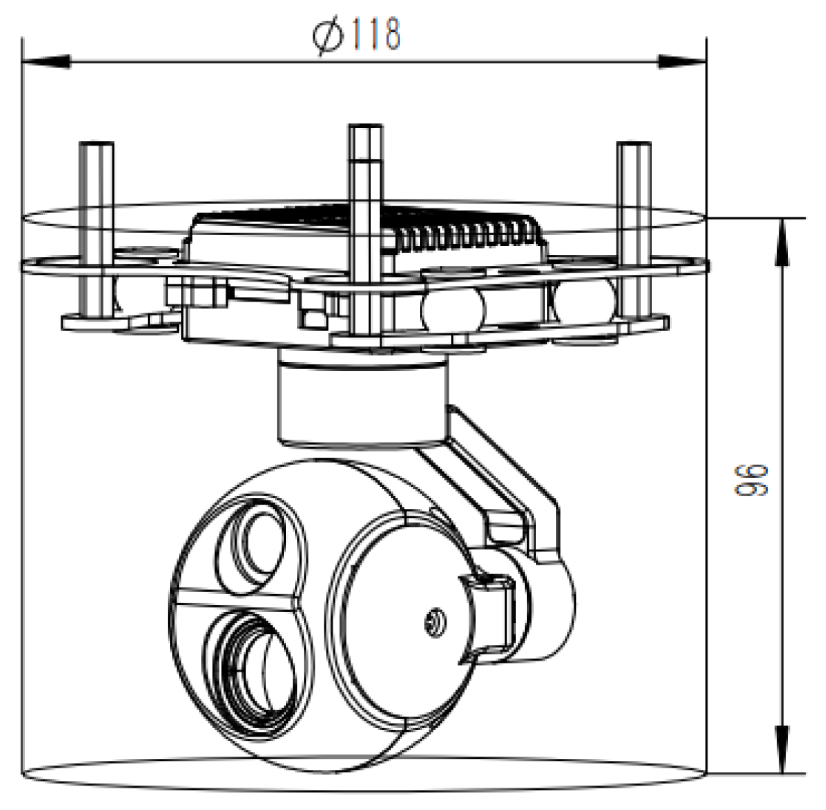

Dimensions：

118mm × 96mm

Work environment：

-10℃ to +40℃

Storage Condition：

-20℃ to +60℃

Weight：

187±10g
