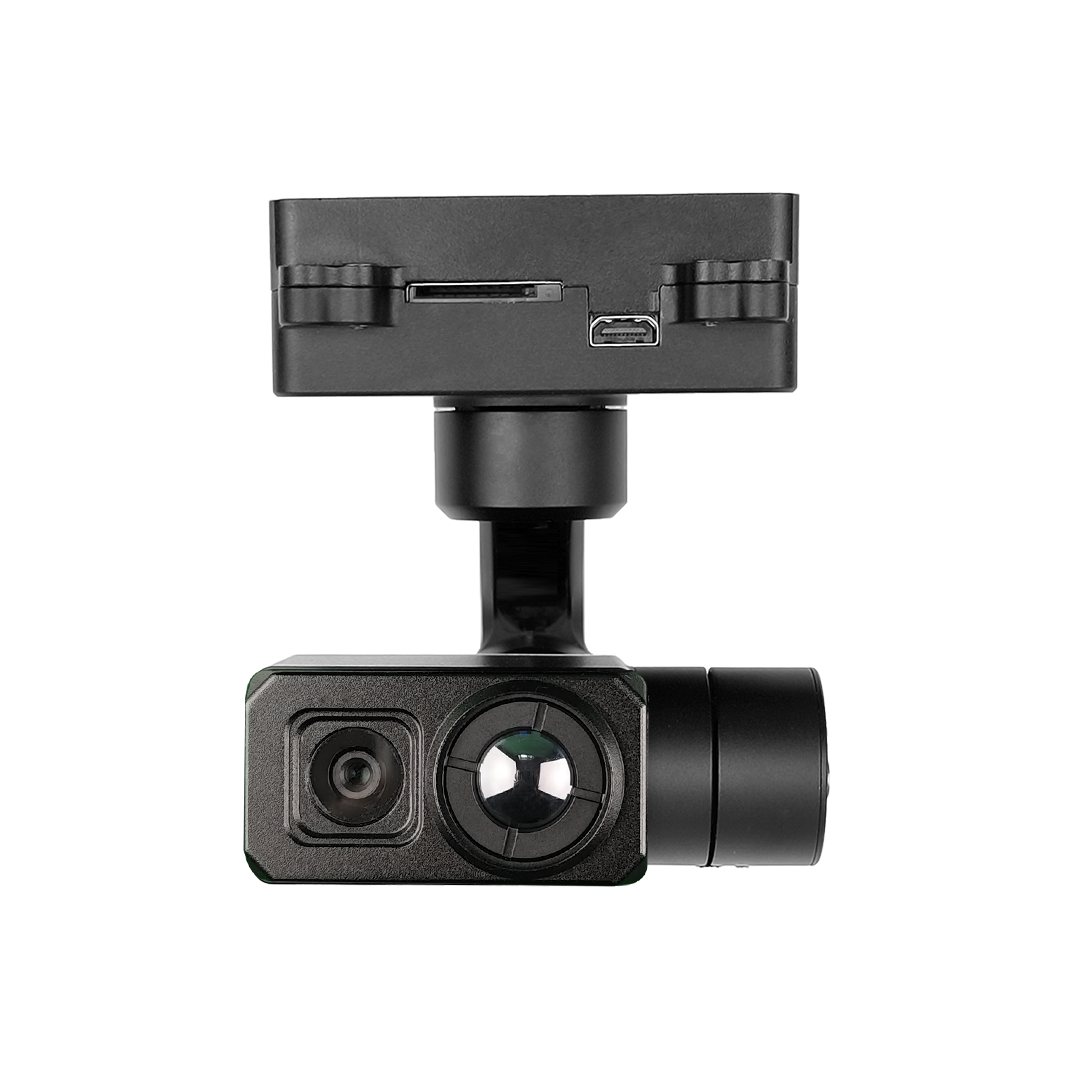

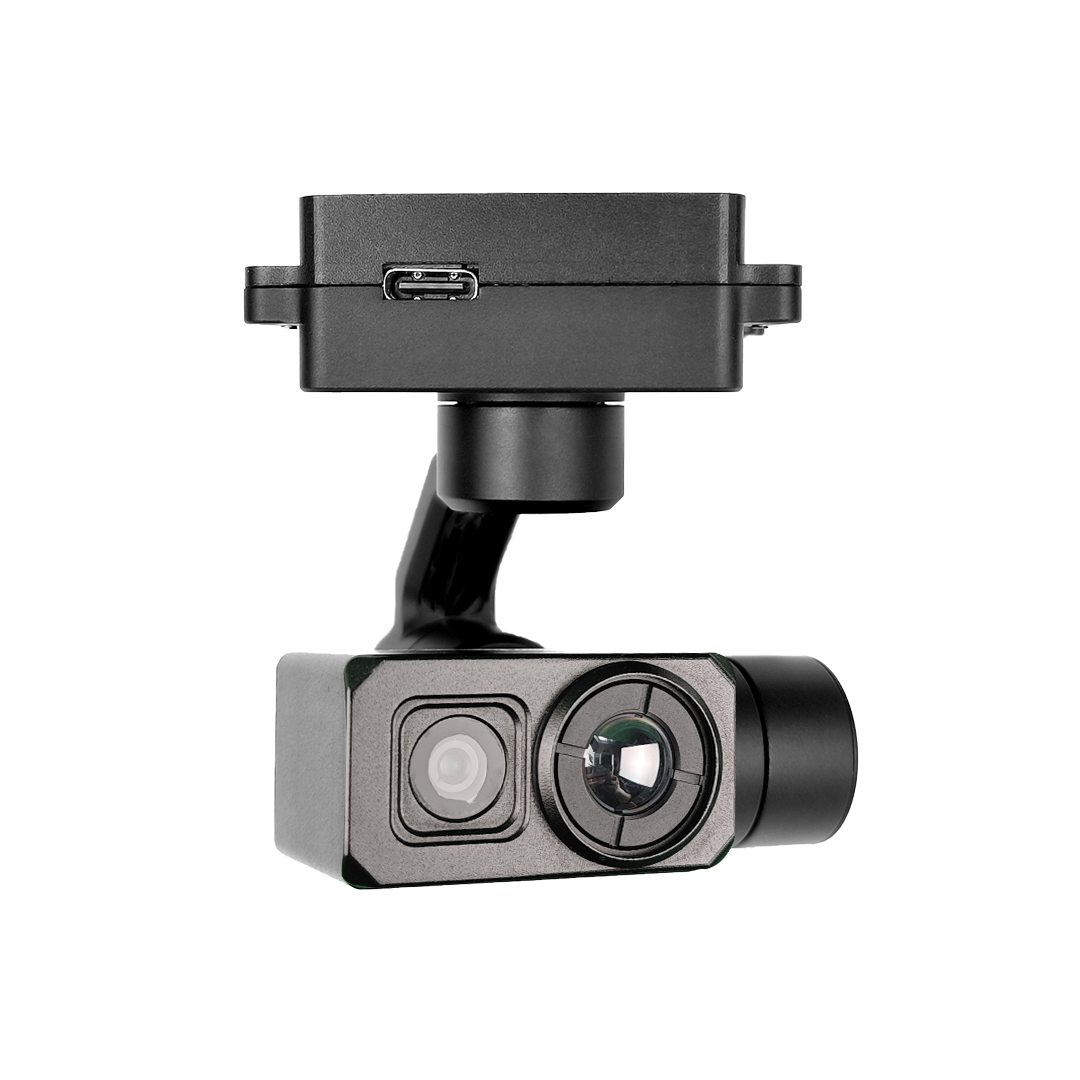

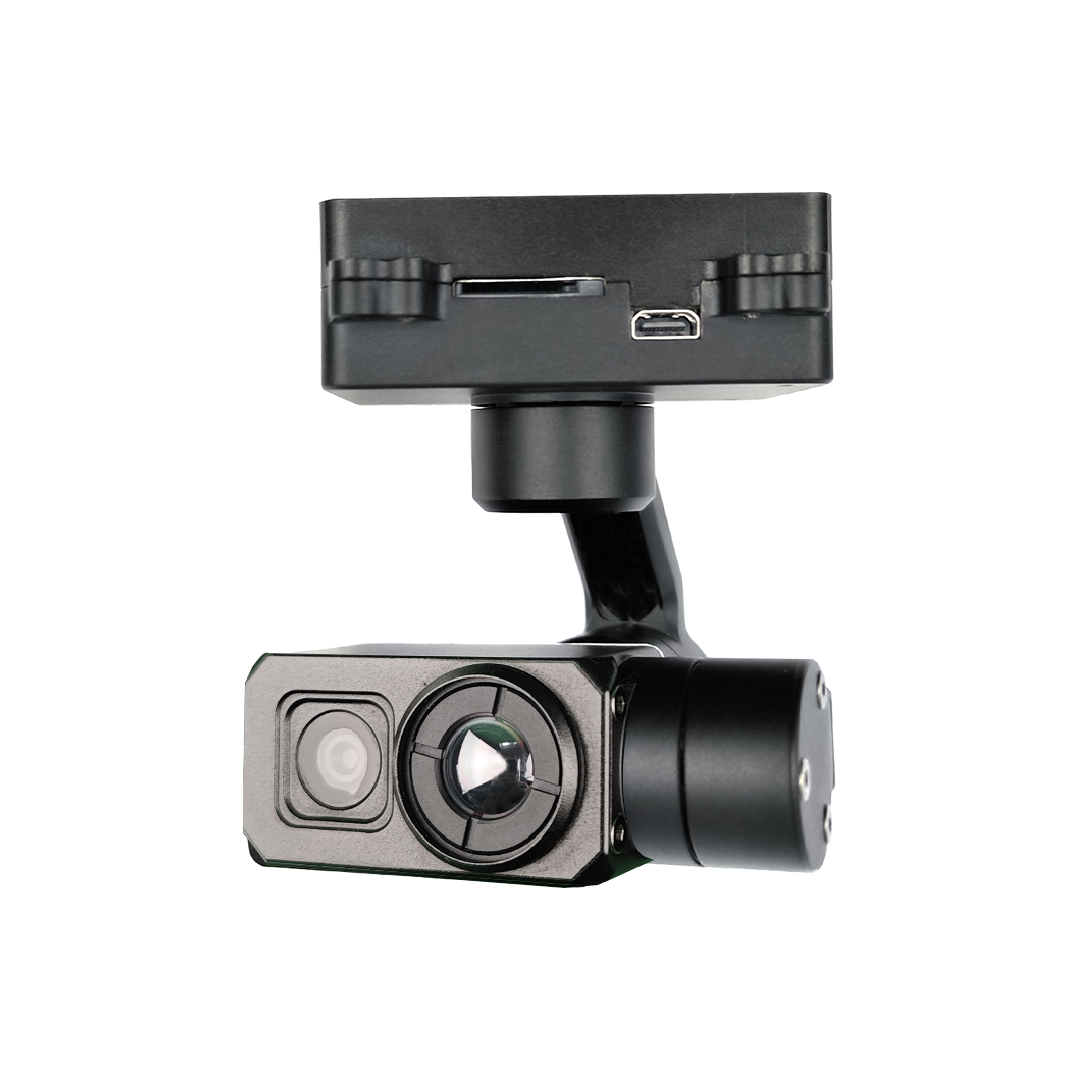

TOPOTEK Gimbal cameraDHU586G609P is a fixed focus dual optical system that integrates 48 million fixed focus, 9.1mm640 × 512 thermal imaging, and high-precision professional three-axis stabilization pod. It adopts network IP output and high-precision encoder FOC control scheme for the gimbal, which has the characteristics of high stability, small size, light weight, and low power consumption; The visible light camera uses a SENSOR with an effective pixel count of 48 million. Serial port, S.BUS, and network can all control the camera and gimbal, supporting local TF dual channel recording and photography.
| Voltage： |
DC 12V-26.2V |
Power： |
Dynamic 4.5W |
| Roll Angle： |
-30°～ +30° |
Pitch Angle： |
-45°～ +100° |
| Yaw Angle： |
-140°～ +140° |
Jitter Angle： |
±0.02° |
| Horizontal Jitter Angle： |
±0.03° |
One-Click Restore： |
One-click restore to the initial position |
| Adjustable Gimbal Speed： |
When the PTZ rotates, it conducts speed adaptation based on the current speed mode and the multiple of visible light camera |
Control mode： |
Support network IP UART control (SBUS and PWM are optional) |
| CMOS Size： |
1/2.0 inch 48 megapixel CMOS Sensor |
| Digital Zoom： |
9x digital zoom |
| IP output mode： |
1080P 30fps |
| Field Angle(FOV)： |
4.8mm lens D78°，H65°，V51°
|
| Resolution ratio： |
640×512 pixel |
| Space between pixels： |
12μm |
| Type： |
Uncooled focal plane microcalorimeter |
| Wavelength Range： |
8～14μm |
| Thermal sensitivity(NETD)： |
≤50mk@F1.0@25℃
|
| Field of view： |
9.1mm Lens，Angle：48.3° x 38.7°
|
| Measurement function (optional)： |
Support global temperature measurement, optional full pixel temperature storage function
|
| Min tracking target size： |
16×16 pixels |
Max tracking target size： |
256×256 pixels |
| Target Memory Time： |
2 seconds |
Tracking speed： |
50 Pixel/Frame max |
| Simultaneous detection qty： |
100 targets max |
Recognized categories： |
Human and Vehicle |
| Min detection target size： |
32×32 pixels |
Debounce： |
Dynamic stabilization |

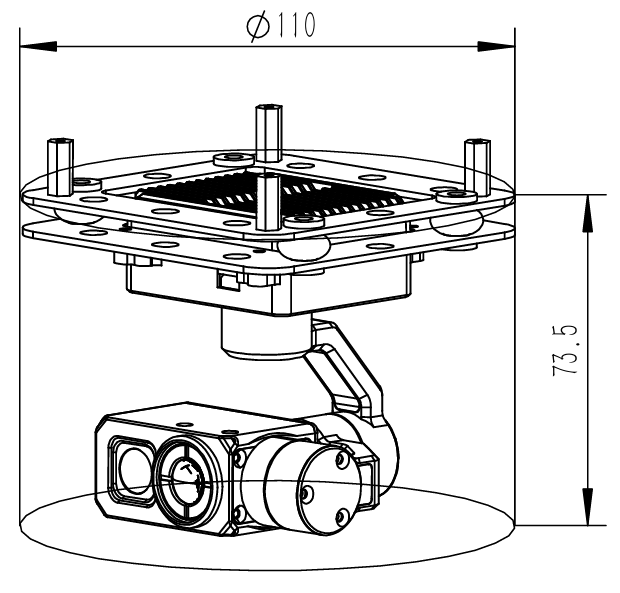

| Dimensions： |
110*73.5 |
Working Condition： |
-10℃ to +40℃ |
| Storage Environment： |
-20℃ to +60℃ |
Weight： |
145±10g |
