TOPOTEK Gimbal camera

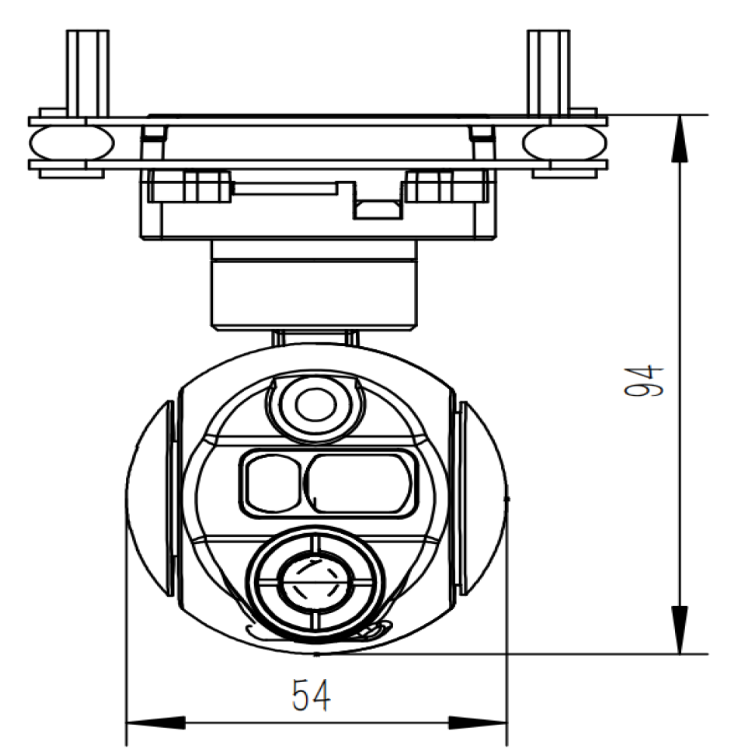

DHU335G609L15 is an integrated 4MP prime lens visible-light sensor with 9x digital zoom, a 9.1mm focal length 640×512 thermal imaging sensor with 9x digital zoom and an up to 1500km laser rangefinder, with professional stabilized 3-axis gimbal, supporting IP and HDMI video output. Adopted with high-precision encoder FOC control scheme, the gimbal has the features of high stability, compact size, light weight and low power consumption. The visible light camera uses a 4-megapixel sensor; the thermal imager utilizes a 640×512 resolution uncooled focal plane microbolometer. The camera system supports RTSP picture-in-picture streaming over the network, with 4 picture-in-picture modes, 10 pseudo-color display modes, and global temperature measurement. Both the serial port ① and the network can control the camera and the gimbal, and supports local TF card dual-channel recording and photo taking.
| DC12V-26.2V | Static 7W | ||
| -45° ～ +45° | -45° ～ +100° | ||
| -140°～ +140° | ±0.02° | ||
| ±0.03° | One-click automatic quick return to the initial position | ||
| The speed adaption is carried out based on the current speed mode and the multiple of the visible light camera. | Support network IP control and serial port control And SBUS control (pwm optional ) |
| CMOS SENSOR pixel: 4mega pixels | |
| Support 9x digital zoom | |
| H264，H265,video streaming, local TF storage | |
| Micro-D HDMI 1080P 60fps | |
| FOV： 92°×59° |
| 640*512 | |
| 12μm | |
| Uncooled focal plane microbolometer | |
| 8～14μm | |
| ≤50mk@F1.0 | |
| 9.1mm Lens; Angle: 45.76°×37.31° | |
| Center point, highest temperature, lowest temperature, temperature display |
| 905nm (class 1 laser) | |
| 5-1500m | |
| Within 400m, ≤ ± 1m; Above 400, ≤ ± 0.4m%/ 0.1m |
| 16×16 pixels | 256×256 pixels | ||
| 2 seconds | 50 Pixel/Frame max | ||
| 100 targets max | Human and Vehicle | ||
| 32×32 pixels | Dynamic stabilization |
| Φ95mm H:110mm | -10℃ to +55℃ | ||
| -20℃ to +60℃ | 185±10g |
