  • DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

0 stars, based on 0reviews
Price:
$7887.00 / piece
Quantity: - + 999items available
Contact Us
TOPOTEK Gimbal camera

DHU30G625 is a professional three-axis stabilization pod with integrated 270x hybrid zoom, 640×512 thermal imaging 25mm focal length. This pod adopts a compact design with high stability, high integration and low power consumption. The visible light camera uses a wide dynamic sensor with an effective pixel of 2 mega. The thermal imaging uses a vanadium oxide 640×512 resolution detector with a built-in baffle. Provides a software ground station, supports picture-in-picture display of dual-channel video, network, S.BUS and UART can directly control the PTZ and camera, supports local TF storage and network file read and write operations, supports dual-channel synchronous recording, supports multiple picture-in-picture modes and pseudo-color switching.

DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal


DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

Voltage：

   DC12～26.2V

Power：

   Dynamic 6W

Roll Angle：

   ﹣45°～ ﹢45°

Pitch Angle：

   -40°～ +100°

Yaw Angle：

   -295°～ +295°

Pitch and Roll Jitter Angle：

   ±0.02°

Horizontal Jitter Angle：

   ±0.03°

One-Click Restore：

   One-click restore to the initial position

Adjustable Gimbal Speed：

   When the gimbal rotates, the speed is adapted based on the current speed mode and the visible light camera multiple

Control Modes：

   Support network IP control, S.BUS control, UART control (PWM control is optional)

DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

CMOS Size：

   1/2.8 INCH 2 mega pixel wide dynamic CMOS SENSOR

Optical Zoom：

   30x HD optical zoom lens, f=4.5～135 mm ±5%

AF Time：

   Real time fast focusing, focusing time < 1s

Video Output：

   Network output RTSP 1080P stream, local TF 1080P storage

Field Angle(FOV)：

    D : WIDE 67.8º±5% TELE 2.77º±5%
  H : WIDE 59.8º±5% TELE 2.34º±5%
  V : WIDE 40.5º±5% TELE 1.48º±5%


DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

Resolution ratio：

   640×512 pixel

Space between pixels：

   12μm

Type：

   Uncooled vanadium oxide

Wavelength Range：

   8～14μm

Thermal sensitivity(NETD)：

   ≤50mk@25℃@F1.0

Field of view：

   25mm Lens，Field of view：17.3°×14.0°

Measurement function (optional)：

   Support global temperature measurement, optional full pixel temperature saving function


DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

Min tracking target size：

   16×16 pixels

Max tracking target size：

   256×256 pixels

Target Memory Time：

   2 seconds

Tracking speed：

   50 Pixel/Frame max

Simultaneous detection qty：

   100 targets max

Recognized categories：

   Human and Vehicle

Min detection target size：

   32×32 pixels

Debounce：

   Dynamic stabilization


DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal

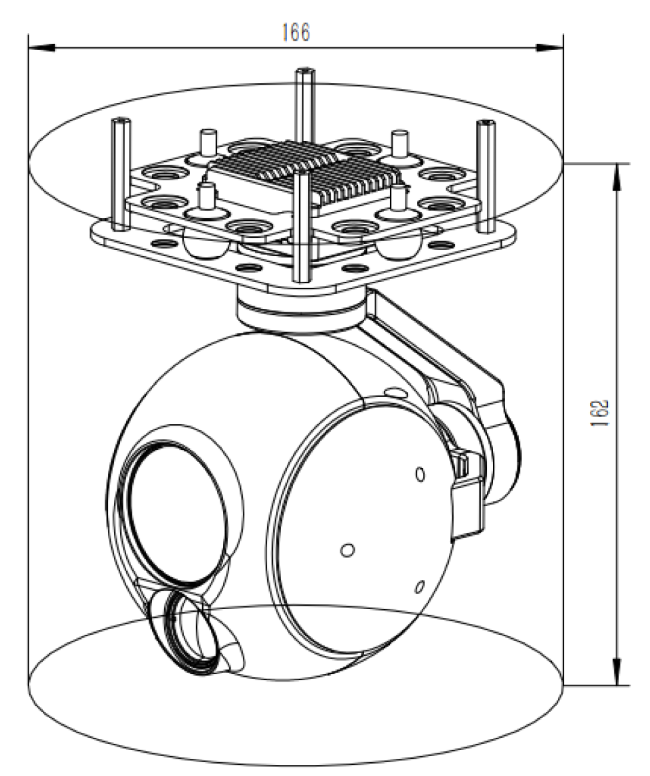

Dimensions：

   166mm * 162mm

Operating Environment：

   -10℃ to +55℃ / 20% to 80% RH

Storage Conditions：

   -20℃ to +60℃ / 20% to 95% RH

Weight：

   645±10g




DHU30G625 High Performance Dual Sensor Gimbal 30X Optical Zoom+25mm Thermal
